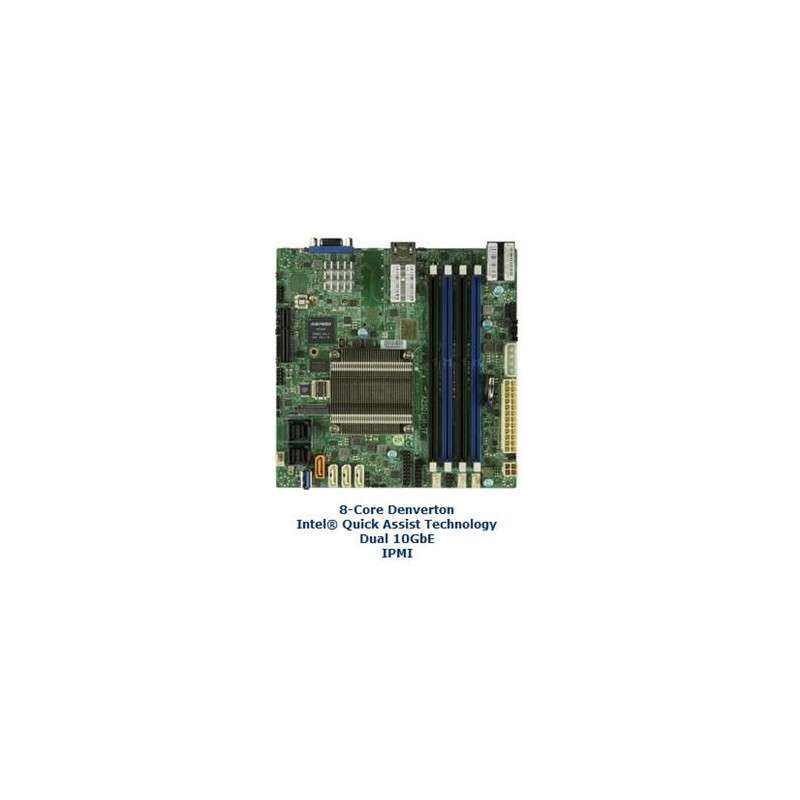

SUPERMICRO mini-ITX MB Atom C3758 (8-core), 4x DDR4 ECC DIMM, 12x SATA, 1x PCI-E 3.0 x4, 2x 10Gb (RJ45), IPMI

Product SKUs MBD-A2SDi-H-TF A2SDi-H-TF Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Atom® Processor C3758. Single Socket FCBGA1310 supported, CPU TDP support 25W Cores / Cache 8 cores, 8 threads / 16MB cache System Memory Memory Capacity Up to 256GB Registered ECC RDIMM, DDR4-2400MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset System on Chip SATA SoC controller for 12 SATA3 (6 Gbps) ports; 4 SATA3 ports, 2 MiniSAS HD ports IPMI ASPEED AST2400 BMC Network Controllers Dual LAN with Intel® C3000 SoC 2 10GBaseT Graphics Aspeed AST2400 BMC Input / Output SATA 12 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports USB 4 USB 2.0 ports (2 rear + 2 headers), 1 USB 3.0 ports ( + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4 M.2 M.2 Interface: PCI-E 3.0 x2 and SATA Form Factor: 2242, 2280 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.4 SMBIOS 2.7.1 Management Software IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog Power Configurations ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +5V, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT, VCGI FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors Temperature CPU thermal trip support LED UID/Remote UID Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Innovation Engine, RoHS, SDDC, System level control, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing
