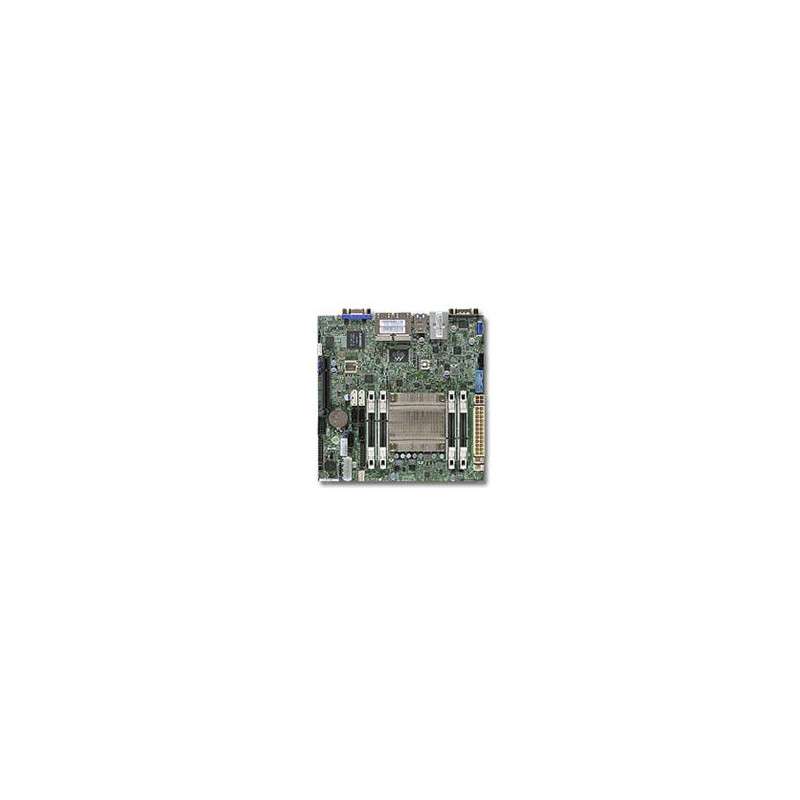

SUPERMICRO miniITX MB Atom E3940 4-core (9W TDP), 1x DDR3 SODIMM, 4xSATA3, M.2, 1xPCI-E 2.0 x2, 2xLAN, HDMI, DP,VGA

Links & Resources Tested Memory List Tested HDD / SSD List Motherboard Manual Quick Reference Guide Update Your BIOS BMC Firmware Download the Latest Drivers and Utilities Download Driver CD OS Compatibility Tested M.2 List Optimization Specifications ? Product SKUs MBD-A2SAN-E A2SAN-E Physical Stats Form Factor 3.5" SBC Dimensions 5.7" x 4.0" (14.6cm x 10.16cm) Processor/Cache CPU Intel® Atom® Processor E3940 Single Socket FCBGA-1296 supported, CPU TDP support Up to 9.5W TDP Cores / Cache 4 cores, 4 threads System Memory Memory Capacity Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3-1866MHz, in 1 DIMM slot Memory Type DDR3L up to 1866Mhz 8GB DIMM Sizes 2GB, 4GB, 8GB Memory Voltage 1.35V On-Board Devices Chipset System on Chip SATA SoC controller for 1 SATA3 (6 Gbps) ports; Network Controllers Dual LAN with Intel® Ethernet Controller I210IT Audio ALC 888S HD Audio Graphics Intel® HD Graphics Input / Output SATA 1 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (4 via headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port, 1 LVDS port, 1 HDMI port Serial Port / Header 4 COM Ports (4 headers), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control) TPM 1 TPM Chip Others 1 8-bit GPIO header 1 HD Audio header Mic-in/Headphone-out(Audio only support at 0~60C) 1 SMBus header 1 Panel backlight power header 1 System Fan Expansion Slots PCI-E 1 Full size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1) 1 M.2 2280 B-Key (PCI-E Gen2 x 1,SATA x 1) M.2 M.2 Interface: SATA and PCI-E 2.0 x1 and USB 2.0 Form Factor: 2280 Key: B-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 SMBIOS 3.0 UEFI 2.5 PCI FW 3.0 Management Software SuperDoctor® 5, Watchdog Power Configurations +12V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper PC Health Monitoring Voltage +1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI FAN 1x 4-pin fan header (up to 1 fan), Fan speed control, Low noise fan speed control, PWM fan speed control, System level control, Thermal control tachometer fan connectors Temperature CPU thermal trip support LED Standby alert LED Other Features 4-pin 12v DC power connector, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL Operating Environment Operating Temperature Range -30°C ~ 75°C (-22°F ~ 167°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
