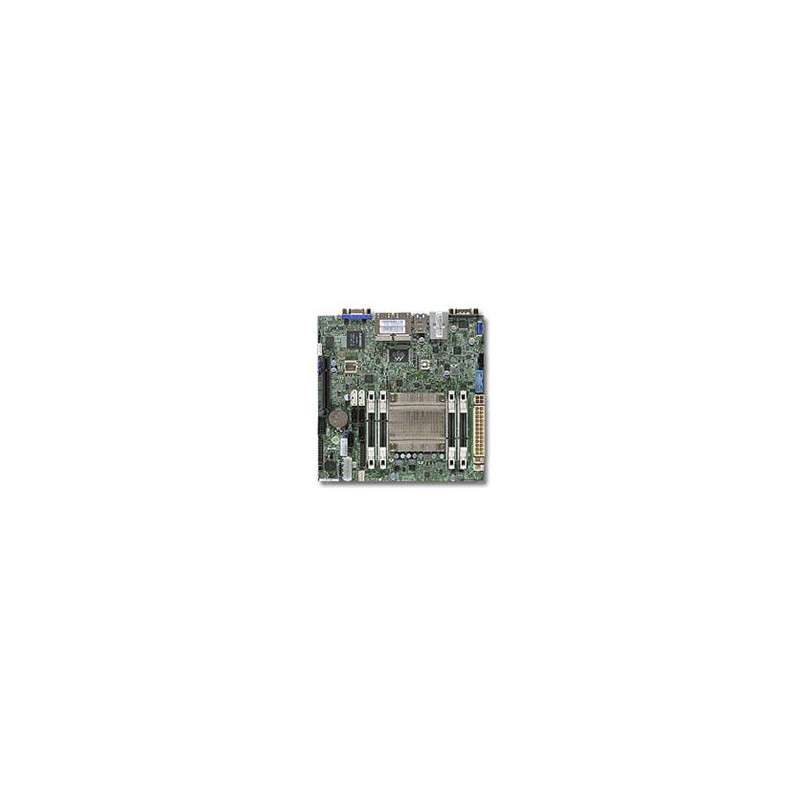

SUPERMICRO miniITX MB Atom E3940 4-core (9W TDP), 1x DDR3 SODIMM, 4xSATA3, M.2, 1xPCI-E 2.0 x2, 2xLAN, HDMI, DP,VGA
Mini-ITX základní deska s procesorem Atom E3940 (4 jádra, 9W TDP). Podporuje až 8GB DDR3L RAM, 4xSATA3, M.2 a PCI-E 2.0. Obsahuje Dual LAN, HDMI, DP, VGA a 8x USB. Ideální pro kompaktní aplikace.
6 989 Kč bez DPH 5 776 Kč
Popis produktu
Specifications ?
Product SKUs
MBD-A2SAV A2SAV
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17.02cm x 17.02cm)
Processor/Cache
CPU Intel® Atom® Processor E3940.
Socket FCBGA1296 supported
System Memory
Memory Capacity Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Memory Type DDR3L up to 1866Mhz 8GB
DIMM Sizes 2GB, 4GB, 8GB
Memory Voltage 1.35V
On-Board Devices
Chipset System on Chip
SATA Marvel 88SE9230 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,10
SoC controller for 2 SATA3 (6 Gbps) ports;
Network Controllers Dual LAN with Intel® Ethernet Controller I210-AT
Audio ALC 888S HD Audio
Graphics Intel® HD Graphics
Input / Output
USB 8 USB 2.0 ports (2 rear + 5 headers + 1 Type A)
2 USB 3.0 ports (2 rear)
Video Output 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port
Serial Port / Header 3 COM Ports (1 rear, 2 headers)
Others 1x COM in RJ45, 1X COM in RS232, and 1X COM in RS485.
Expansion Slots
PCI-E 1 PCI-E 2.0 x2 (in x8 slot)
1x Mini-PCI-E with mSATA
M.2 Form Factor: 2242, 2280
System BIOS
BIOS Type AMI UEFI
Management
Software SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, Monitors CPU voltages, System level control
FAN 2x 4-pin fan headers (up to 2 fans), Fan speed control, Low noise fan speed control, PWM fan speed control, System level control, Thermal control tachometer fan connectors
Temperature N/A
LED N/A
Other Features 4-pin 12v DC power connector, ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL
Operating Environment
Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
Mini-ITX základní deska s procesorem Atom E3940 (4 jádra, 9W TDP). Podporuje až 8GB DDR3L RAM, 4xSATA3, M.2 a PCI-E 2.0. Obsahuje Dual LAN, HDMI, DP, VGA a 8x USB. Ideální pro kompaktní aplikace.
