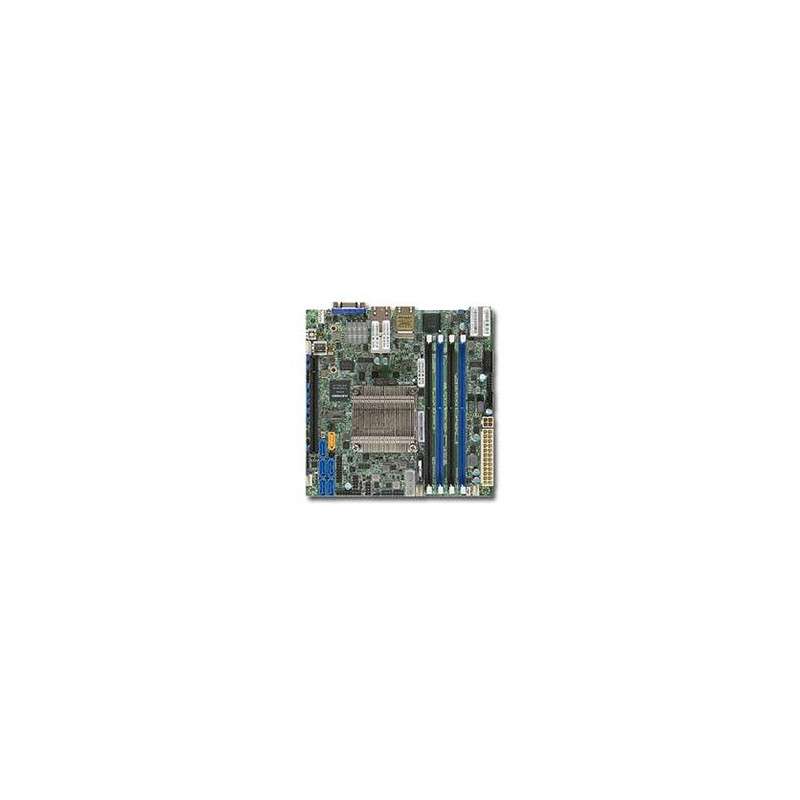

SUPERMICRO mini-ITX MB Xeon D-1537 (8-core), 4x DDR4 ECC RDIMM,6xSATA3.0, 1x PCI-E 3.0 x16, 2x10GbE SFP+,2x1GbE,IPMI

Product SKUs MBD-X10SDV-8C-TLN4F+ X10SDV-8C-TLN4F+ Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Xeon® Processor D-1537. Socket FCBGA1667 supported, CPU TDP support 35W Cores / Cache 8 cores, 16 threads / 12MB cache System Memory Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 1GbE LAN via Intel® i350-AM2 Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 6 SATA3 (6Gbps) port LAN 2 10G SFP+ LAN ports 2 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 2.0 ports (2 headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Others GPIO and SMbus headers Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242, 2280 Key: M-Key Support SATA devices System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog System Management Software IPMIView for Linux/Windows IPMICFG SUM SuperDoctor 5 Power Configurations ACPI Power Management Main Switch Override Mechanism Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control FAN 4x 4-pin fan headers (up to 4 fans), Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control Temperature CPU thermal trip support, I2C temperature sensing logic, Monitoring for CPU and chassis environment, PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
