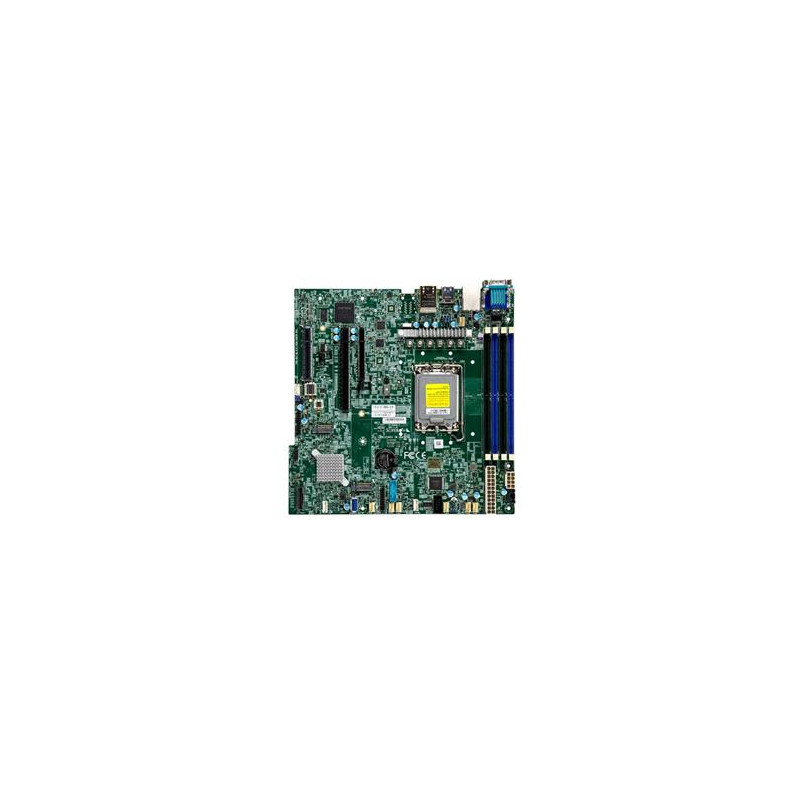

SUPERMICRO MB LGA1700 4xDDR5 8xSATA 2xM.2 .PCIe1x1x 8 16 2xLAN IPMI

Deska je formátu microATX, podporuje procesory Intel Xeon E-2400/Pentium na socketu LGA1700. Nabízí 4 DIMM sloty pro DDR5, 8 SATA3 portů, 2 M.2, a má dvojitou LAN s IPMI pro vzdálenou správu.
Na objednávku
10 658 Kč bez DPH 8 809 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2259172
MBD-X13SCH-F
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs
MBD-X13SCH-F
Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • Intel® Xeon® E-2400/Pentium®* Processor
  • Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
  • *Pentium® G7400 and G7400T
Core
  • Up to 8 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MHz
Memory Type
  • 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C266
SATA
  • Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16,
  • 2 PCIe 4.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 2 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Management
Software
Power Configurations
  • ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status, +3.3V standby
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • Fan speed control
  • Overheat LED indication
  • 7 fans with tachometer status monitoring
Other Features
  • WOL, UID, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion header, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
