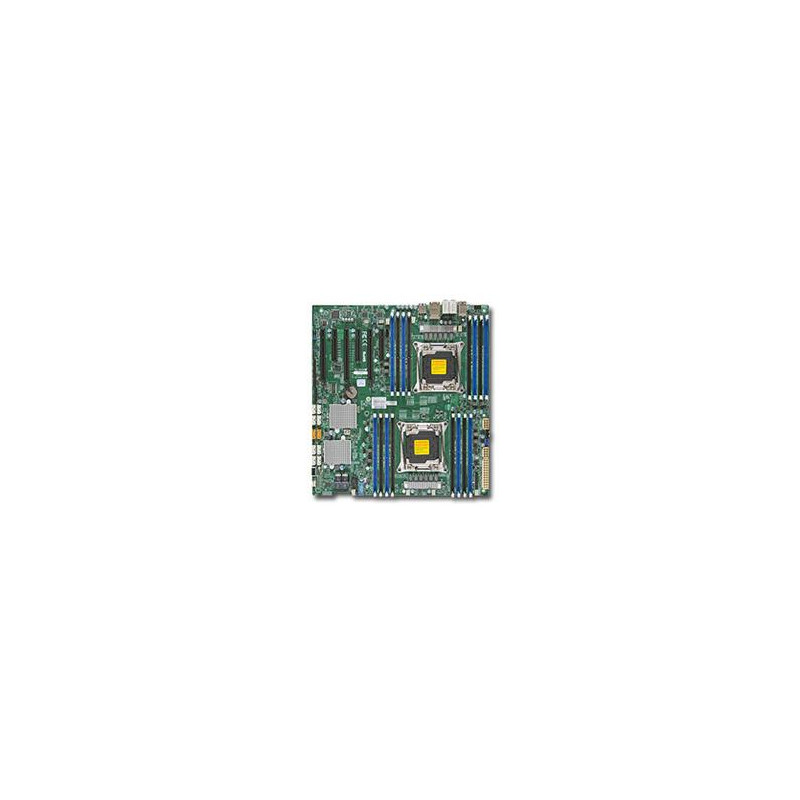

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC,10xSATA3 8x SAS3 sw LSI 3008(PCI-E 3.0 3,2(x16,x8)PCI-E 2.0 1(x4),Audio,2x

< Product SKUs MBD-X10DAC X10DAC Physical Stats Form Factor E-ATX Dimensions 12" x 13" (30.48cm x 33.02cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s Cores / Cache Up to 22 cores † / Up to 55MB† cache Note † BIOS version 2.0 or above is required Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Up to 1TB 3DS ECC/non-ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 SAS Broadcom 3008 SAS3 (12Gbps) controller; SW RAID 0, 1, 10 AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet ControllerSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Audio RealTek ALC888 7.1 High Definition Audio with S/PDIF header Input / Output SATA 10 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 5 USB 2.0 ports (2 rear + 2 headers + 1 Type A) 6 USB 3.0 ports (4 rear + 2 headers) TPM 1 TPM Header Expansion Slots PCI-E 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8 slot) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 Management Software NMI, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Chassis intrusion header, Monitors CPU voltages, Supports system management utility FAN 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, Thermal Control for 8 Fan Connectors LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID Other Features Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
