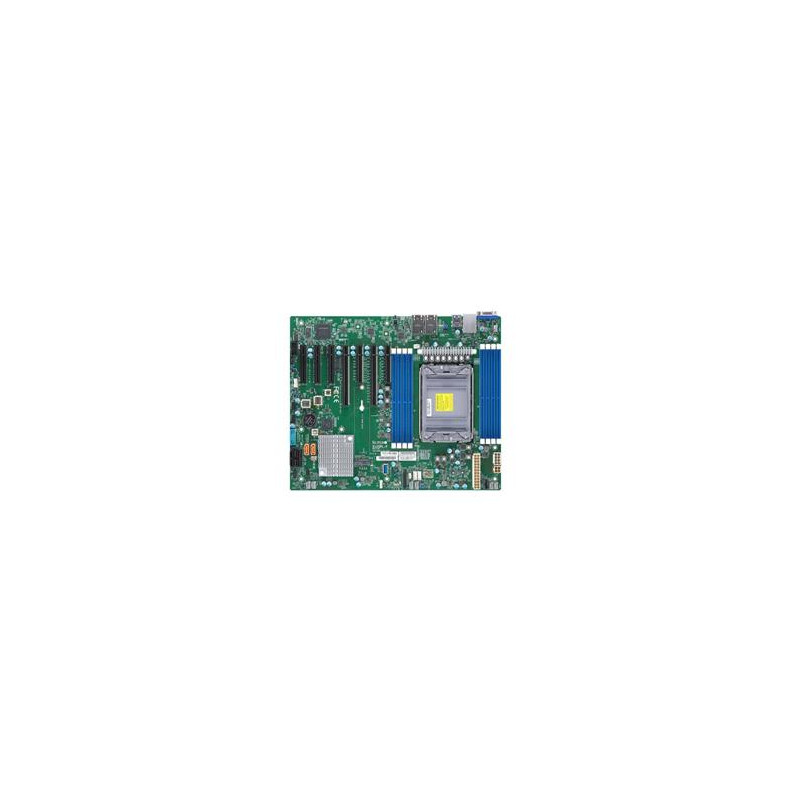

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 10xSATA3, M.2, 7x PCIe4.0, 2x 1Gb LAN,IPMI
Základní deska s socketem LGA-4189 podporuje procesory Intel® Xeon® 3. generace a nabízí až 40 jader. Obsahuje 8 DDR4 ECC slotů s kapacitou až 2TB, 10 SATA3 portů, 7 PCIe 4.0 slotů a dual LAN. Ideální pro náročné serverové aplikace.
14 438 Kč bez DPH 11 932 Kč
Popis produktu
Product SKUs
MBD-X12SPL-F X12SPL-F
Physical Stats
Form Factor ATX
Dimensions 12.1" x 10" (30.73cm x 25.4cm)
Processor/Cache
CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache Up to 40 cores
System Memory
Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C621A
SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI ASPEED AST2600 BMC
Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller
Graphics ASPEED AST2600 BMC
Input / Output
SATA 10 SATA3 (6Gbps) ports
LAN 2 RJ45 Gigabit Ethernet LAN ports
USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)
Video Output 1 VGA port
Serial Port / Header 1 COM Port (1 header)
TPM TPM Header
Expansion Slots
PCI-E 2 PCI-E 4.0 x8,
1 PCI-E 4.0 x16,
1 PCI-E 4.0 x8 (in x16 slot)3 PCI-E 3.0 x8
M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
System BIOS
BIOS Type AMI UEFI
BIOS Features ACPI 6.2
SMBIOS 3.0 or later
UEFI 2.7
Management
Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
Power Configurations ACPI Power Management
CPU thermal trip support for processor protection
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT
Temperature PECI, CPU thermal trip support
LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, RoT, UID, WOL
Operating Environment
Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
