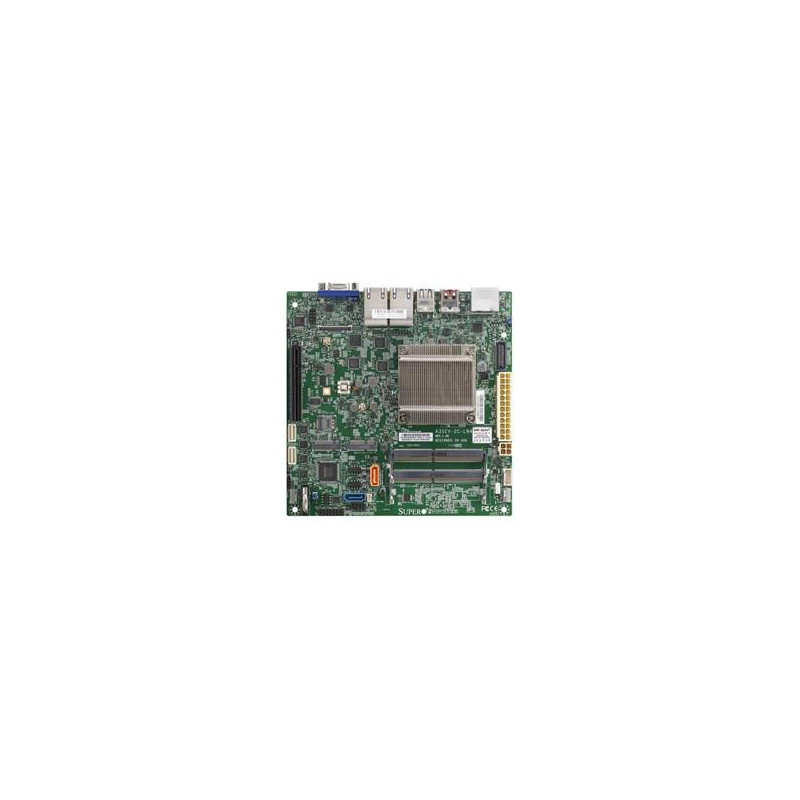

SUPERMICRO mini-ITX MB Atom x6425E (4-core), 2x DDR4 ECC SO-DIMM, 8xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI, bulk

Skladem   2 ks
9 060 Kč bez DPH 7 488 Kč

SUPERMICRO
1651924
MBD-A3SEV-4C-LN4-B
36 měsíců

Popis produktu

Key Features

  1. Intel® Atom® Processor x6425E
    Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
  2. Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
  3. 1 PCIe 3.0 X2 (in x8 slot)
    1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280
    1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230
  4. Single LAN with Intel® Ethernet Controller I210IT
    ONLY i210 support PXE
    3 LAN with 1GbE with Marvell® 88E1512
  5. System on Chip
  6. 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

Optimized Servers

Product SKUs
MBD-A3SEV-4C-LN4
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Atom® Processor x6425E
  • Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP
Core
  • Up to 4 cores, 4 threads
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz
Memory Type
  • 3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB
DIMM Sizes
  • 8GB, 16GB
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE
  • 3 LAN with 1GbE with Marvell® 88E1512
Input / Output
SATA
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.1 Gen2 port(s) (2 rear type A)
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  •
Video Output
  • 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)
Serial Port
  • 4 COM Port(s) (4 header)
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 3.0 X2 (in x8 slot)
M.2
  • M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0
  • Form Factor: 3042/2280, 2230
  • Key: B-Key, E-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.2 or later
  • UEFI 2.7
  • Plug and Play (PnP)
  • SMBIOS 3.3 or later
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, Watchdog
Power Configurations
  • ACPI Power Management, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • Standby alert LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication
Other Features
  • WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector
Operating Environment
Operating Temperature Range
  • -30°C - 70°C (-22°F - 158°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)



















































































































Standard Parts (Bulk Package)
  Part Number Qty Description
I/O Cables CBL-0044L   1 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00058-0N 1 Standard I/O Shield for A2SAV with EMI Gasket
Standard Parts (Retail Package)
  Part Number Qty Description
I/O Cables CBL-0044L   2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00058-0N 1 A3SEV standard 2U I/O Shield
QRG MNL-2355-QRG 1 Motherboard Quick Reference Guide
Optional Parts
  Part Number Qty Description
1U I/O Shield MCP-260-00068-0B 1 1U I/O Shield for A3SEV with EMI Gasket in CS 505/504
Audio Cable CBL-OTHR-0985 1 Audio Cable 30cm
COM Port Cable CBL-CDAT-0685 1 COM Cable 30cm
SATA Cables CBL-0044L   1 57.5CM SATA FLAT S-S PBF
SATA Power Cable CBL-PWEX-0982 1 SATA Power Cable 25cm
USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm
