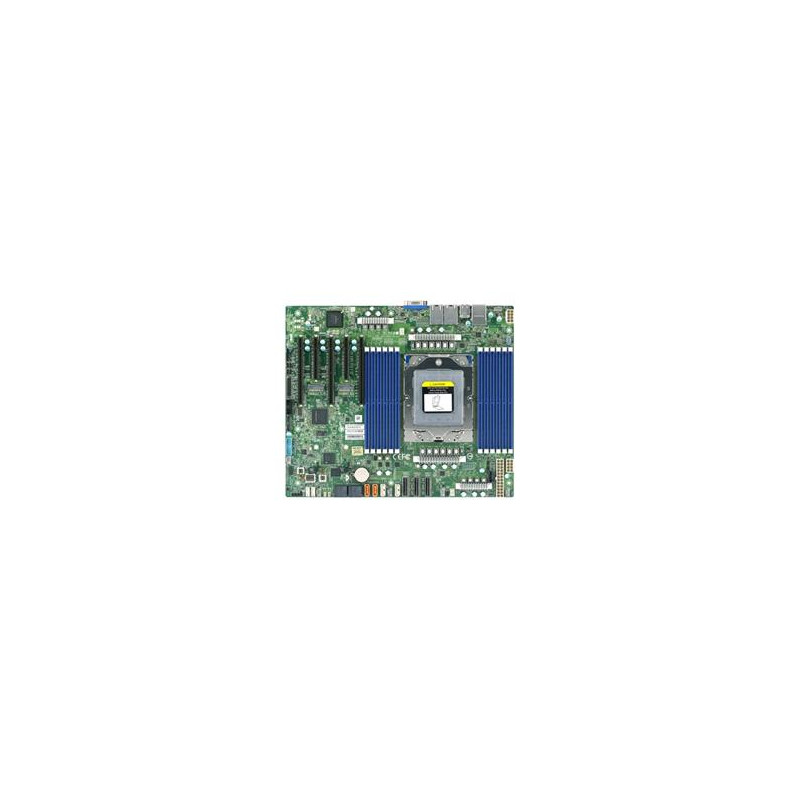

SUPERMICRO MB 1xSP5 (Epyc 9004), 12x DDR5, 8x SATA+6x NVMe 16xSATA+4xNVMe, 2x M.2, PCIe 5.0 (3 x16, 2 x8), 2x1Gb,IPMI

Deska podporuje procesory AMD EPYC 9004 s až 96/192 jádry. Disponuje 12 DIMM sloty pro DDR5 RAM s kapacitou až 3TB, 8 SATA3 porty a 6 NVMe, stejně jako PCIe 5.0 sloty pro rozšíření. Podporuje IPMI a řízení teploty s přehledem stavu ventilátorů.
Na objednávku
17 659 Kč bez DPH 14 594 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1645060
MBD-H13SSL-N-B
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. AMD EPYC™ 9004 series Processors
  2. System on Chip
  3. Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
  4. 3 PCI-E 5.0 x16 2 PCI-E 5.0 x8
  5. Up to 6 USB 3.0 ports(4 rear + 2 via header)
  6. 8 SATA3
  7. 6 PWM 4-pin Fans with tachometer status monitoring
  8. M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110



Product SKUs
MBD-H13SSL-N
  • H13SSL-N
Physical Stats
Form Factor
  • ATX
Dimension
  • 12" x 10.1" (30.48cm x 25.65cm)
Processor
CPU
  • AMD EPYC™ 9004 series Processors
  •
Core
  • Up to 96/192
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
  • 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes
  • 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
Network Controllers
  • Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.1 Gen1 port(s) (4 USB; 2 via header)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
TPM
  • 1 TPM Header
Others
  • 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
  • 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion Slots
PCI-E
  • 3 PCIe 5.0 x16 (in x16 slot),
  • 2 PCIe 5.0 x8
M.2
  • M.2 Interface: 2 SATA/PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
  • SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN
PC Health Monitoring
Voltage
  • VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Other Features
  • RoT
FAN
  • 6x 4-pin fan headers (up to 6 fans)
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
