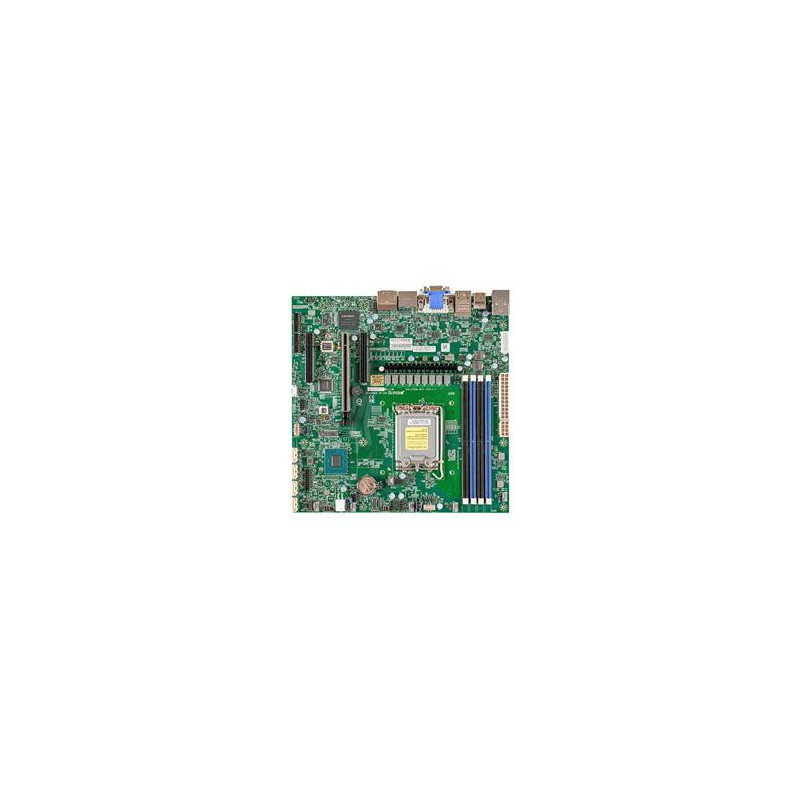

SUPERMICRO MB LGA1700 (core 12g), R680E,4xDDR5,4xSATA3,M.2, PCIe5.0 x16, 2x PCIe4.0 x4, HDMI,2xDP,DVI,Audio,2x 2.5GLAN

Základní deska podporující 12. generaci procesorů Intel s jedním socketem LGA-1700. Nabízí čtyři sloty pro DDR5 RAM, čtyři SATA3 porty, M.2 slot a možnost připojení k více než čtyřem displejům. Vybavena dvojitým 2.5 Gigabit LAN a možností RAID.
Na objednávku
14 363 Kč bez DPH 11 870 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1595611
MBD-X13SAZ-F-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. 12th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processor, Single Socket LGA-1700 supported, CPU TDP supports Up to 125W TDP
  2. Intel® R680E
  3. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots
  4. 1 PCIe 5.0 x16 slot,
    2 PCIe 4.0 x4 slots,
    1 PCIe 4.0 x4 OCulink port
    M.2 Interface: 1 PCIe 4.0 x4
    M.2 Form Factor: 2280/22110
    M.2 Key: M-Key
  5. Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
  6. Intel® R680E Controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 4 Independent Displays (1 VGA port, 2 DP++ ports, 1 HDMI 2.0b port, 1 DVI - D port)
  8. Supports 12V DC power input
  9. Onboard TPM2.0
Product SKUs
MBD-X13SAZ-F
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Single Socket LGA-1700 supported
Core
  • Up to 16 cores
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz

  • *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots
Memory Type
  • 4400/4000/3600MHz
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel R680E
SATA
  • Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • 1x ALC 888S HD Audio port(s)ALC 888S HD Audio
Network Controllers
  • Dual LAN with Intel® Ethernet i225LM
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
USB
  • 2 USB 2 port(s) (2 via header)
  • 6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
  • 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output
  • 1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s)
Serial Port
  • 4 COM Port(s) (2 header RS232/422/485; 2 header RS232)
TPM
  • TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 5.0 x16,
  • 2 PCIe 4.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
Software
  • SuperDoctor® 5, SUM, AMT, vPro, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool
System Management Software
  • Wake-on-LAN, Watchdog, KVM with dedicated LAN
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input
PC Health Monitoring
Voltage
  • VBAT, Memory temperature, CPU temperature, Chipset Voltage, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID
LED
  • Power LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
Other Features
  • RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN
  • 5x 4-pin fan headers (up to 5 fans)
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
