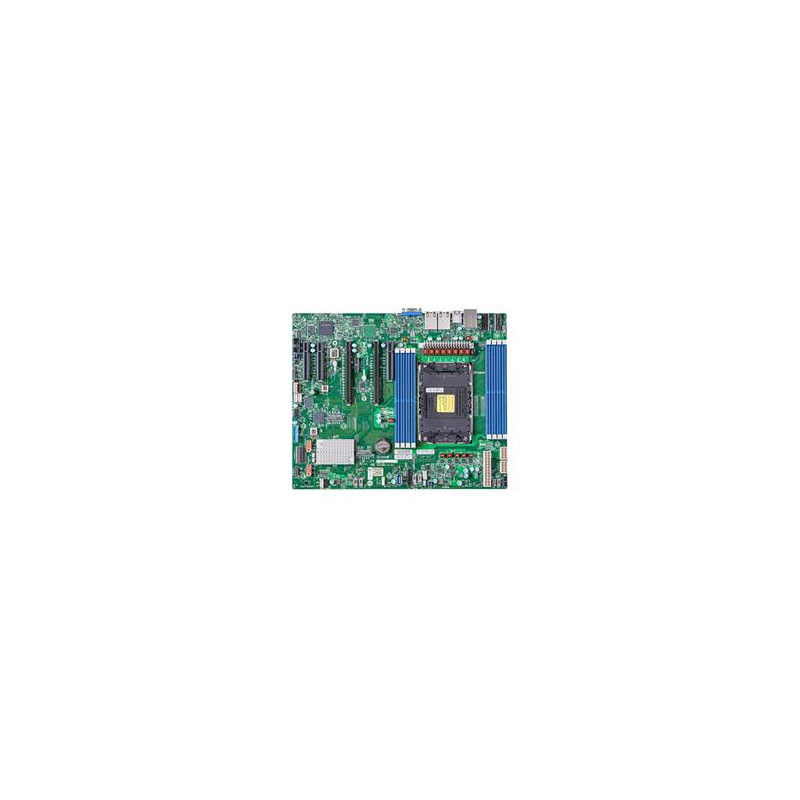

SUPERMICRO MB LGA4677, C741, 8x DDR5 ECC, 4x NVMe, 10xSATA3, 2x M.2, 5x PCIe5.0, 2x 1Gb LAN,IPMI

Představujeme základní desku s procesorovým socketem LGA-4677, která podporuje až 60 jader procesorů Intel Xeon 4. generace. Max. kapacita paměti je 2TB DDR5 s ECC. Umožňuje připojení až 4 NVMe SSD, 10 SATA3 disků a nabízí bohatou rozšiřitelnost s 5 sloty PCIe 5.0 a dvojicí 1Gb LAN portů.
Skladem   3 ks
15 867 Kč bez DPH 13 113 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1590966
MBD-X13SEI-F-B
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
  2. Intel C741® Chipset
  3. Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots
  4. 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs
  5. 3 PCIe 5.0 x8,
    2 PCIe 5.0 x16,
    M.2 Interface: 2 PCIe 5.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  6. Dual LAN with 1GbE with Intel® I210
  7. 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)
  8. Intel® C741 controller for 10 SATA3 (6 Gbps) ports
Product SKUs
MBD-X13SEI-F
Physical Stats
Form Factor
  • ATX
Dimension
  • 12.3" x 10.3" (31.24cm x 26.16cm)
Processor
CPU
Core
  • Up to 60 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
  • 4800/4400/4000MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 10 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 Aspeed AST2600 BMC port(s)
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2 port(s) (2 rear)
  • 4 USB 3.2 Gen1 port(s) (2 rear; 1 type A; 1 via header)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 5.0 x16,
  • 3 PCIe 5.0 x8,
  • 2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
  • M.2 Interface: 2 PCIe 5.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
Management
Software
  • SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chasis Intrusion Detection
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • Fan speed control
  • Overheat LED indication
  • 7 fans with tachometer status monitoring
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

X13SEI-F
