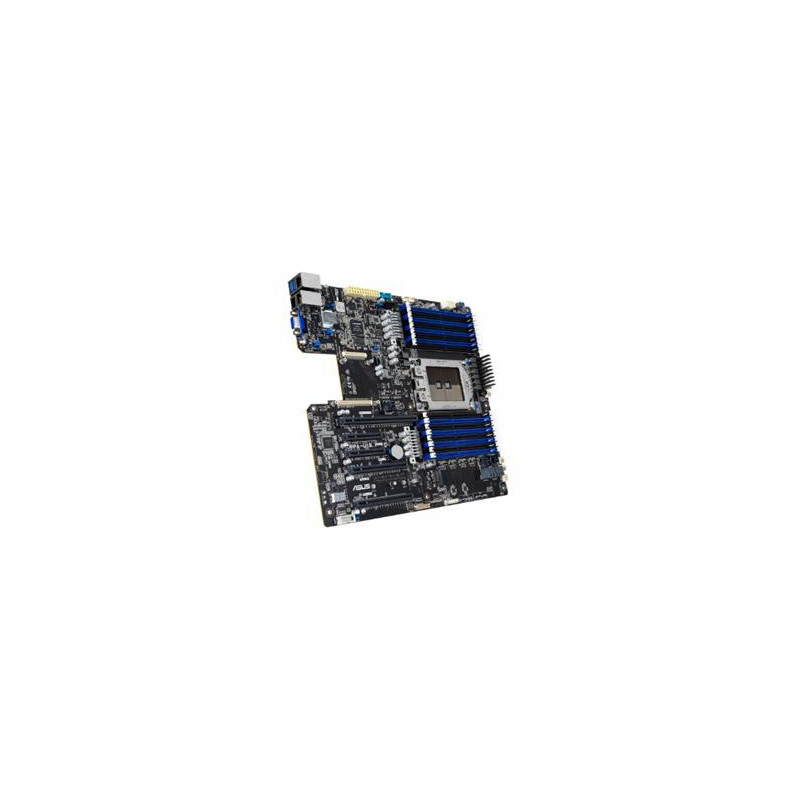

ASUS AMD EPYC LGA 4094, EEB server motherboard, 16*DIMM with DDR4 3200 MHz, 1*PCIe 4.0, 3*PCIe 3.0, 1*PCIe, 1*M.2, 16*SATA, 1*OCP

Processor / System Bus 1 x Socket SP3 (LGA 4094) Option 1 AMD EPYC™ 7002 Series AMD EPYC™ 7003 Series Memory Total Slots : 16 (8-channel) Capacity : Maximum up to 2048GB RDIMM Memory Type : Single Channel DDR4 3200/2933/2666 RDIMM Single Channel 3200/2933/2666 LRDIMM Single Channel 3200/2933/2666 LR-DIMM 3DS Memory Size : * Refer to support page for more information Expansion Slots Slot Location 1 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied Slot Location 4 : PCI-E x8 (Gen3 X8 Link), Auto turn off if slot 3 is occupied Slot Location 5 : PCI-E x8 (Gen4 X8 Link) Slot Location 6 : PCI-E x24 Form Factor EEB (12"x13", 305mm x 330mm) Storage SATA Controller : CPU Integrated 4 x SATA3 6Gb/s ports 12 x SATA3 6Gb/s ports SATA Controller : CPU Integrated 1 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode Networking 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM On Board I/O 1 x USB 3.0 pin header 1 x USB 3.0 ports 1 x Micro SD Card Slot 1 x Serial Port Header 1 x VGA Header 8 x Fan Header , 4pin 1 x TPM header 1 x Chassis Intruder Back I/O Ports 2 x USB3.0 ports 1 x VGAport 2 x RJ 45 GbELANports 1 x RJ 45 Mgmt LAN port Management Solution ASUS Control Center Enterprise (in-band) ASMB9-iKVM (out-of-band/BMC AST2500) Weight Net Weight : 1.385 Kg Gross Weight : 2.505 Kg Environment Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) Note *Slot location 5~6 could support PCIe Gen4 expansion cards.
