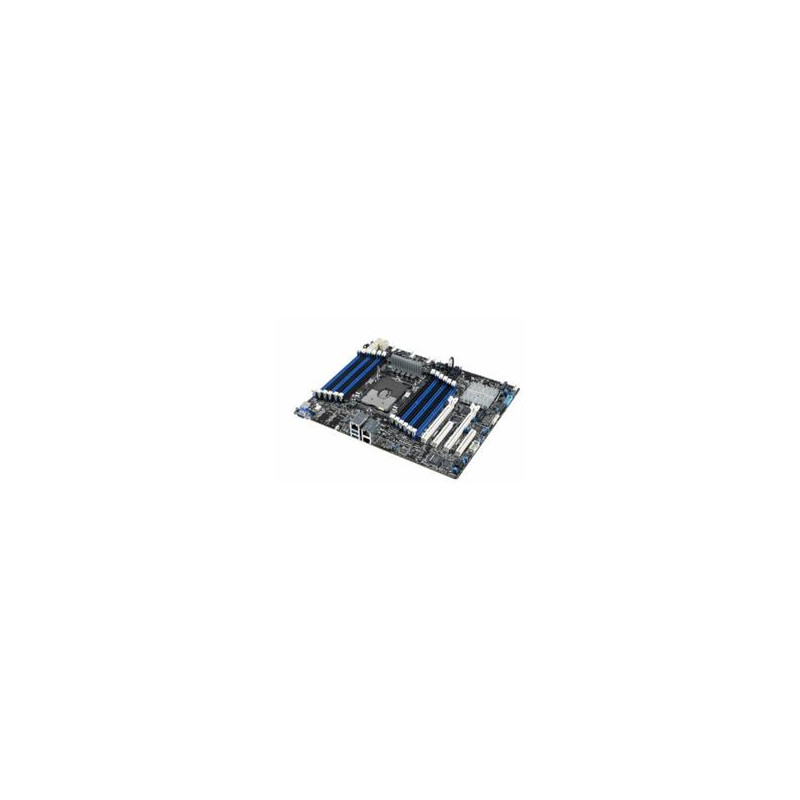

ASUS Intel 1xSocket P(LGA 3647) , C621, 12DIMM, 4PCIe, 13SATA+1M.2, 2*i210AT+1Mgt LAN, IPMI, ATX(12x9.6) 165W TDP

Processor / System Bus 1 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information UPI (10.4 GT/s) Core Logic Intel® Lewisburg PCH C621 Memory Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU) Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS Memory Type : Single Channel DDR4 2933/2666/2400 LR-DIMM 3DS Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots Total Slot : 4 Slot Location 1 : PCI-E x8 (Gen3 X4 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied Form Factor ATX (12"x9.6", 305mm x 244mm) ASUS Features ASUS Fan Speed control technology ASUS Control Center (ASWM Enterprise 2.0) Storage Storage Controller : Intel® C621 13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID ) Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) 2 * OCulink for U.2 Networking 2 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 6 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x M.2 Connector , NGFF Type : 2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED Back I/O Ports 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED Management Solution ASUS Control Center Enterprise (Optional) On-Board ASMB9 -iKVM for KVM-over-Internet Weight Gift Box (1-in-1) Net Weight : 0.97 KG Gross Weight : 1.625 KG Bulk Pack (10-in-1) Net Weight : 9.7 KG Gross Weight : 13.015 KG Environment Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% (Non condensing) Accessories I/O Shield 1 x SATA 6Gb/s cable 1 x Supporting DVD 1 x LGA3647 carrier Monitoring CPU Temperature Fan RPM Note * Please refer to www.asus.com for latest momory AVL update * EEB Mounting Hole Locations
