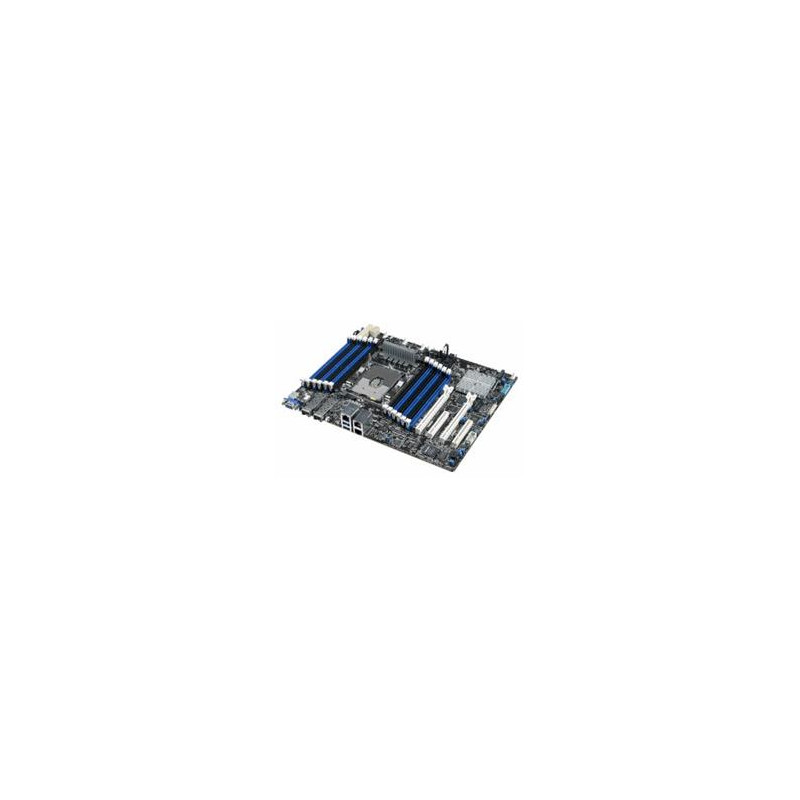

ASUS Intel 1xSocket P(LGA 3647) , C622, 12DIMM, 4PCIe, 13SATA+1M.2, 2*i210AT+1Mgt LAN+1 Dual 10G SFP, IPMI, ATX(12x9.6), 165W TDP
Základní deska s procesorovým socketem P (LGA 3647) podporuje 1. a 2. generaci Xeon Scalable procesorů. Nabízí 12 DIMM slotů pro max. 768GB LRDIMM a 4 PCIe sloty. K dispozici je 13 SATA3 portů a 10GbE SFP+ pro rychlé připojení. Pro správu je integrován ASUS Control Center.
16 689 Kč bez DPH 13 793 Kč
Popis produktu
Processor / System Bus
1 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family
*Refer to support page for more information
UPI (10.4 GT/s)
Core Logic
Intel® Lewisburg PCH C622
Memory
Total Slots : 12 (6-channel per CPU, 12 DIMM per CPU)
Capacity : Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
Memory Type :
Single Channel DDR4 2933/2666/2400
Memory Size :
32GB, 16GB, 8GB, 4GB RDIMM
64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
* Refer to support page for more information
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x8 (Gen3 X8 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied
Form Factor
ATX (12"x9.6", 305mm x 244mm)
ASUS Features
ASUS Fan Speed control technology
ASUS Control Center
Storage
Storage Controller :
Intel® C622
13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )
Intel®VROC (For Linux/Windows)
(Support Software RAID )
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional)
2 * OCulink for U.2
Networking
2 x Intel® I210AT + 1 x Mgmt LAN
1 x Dual 10GbE SFP+with Intel® X722
Graphic
Aspeed AST2500 with 64MB VRAM
On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
6 x Fan Header , 4pin (3pin/4pin fan dual support)
1 x Serial Port Header
1 x SMBus
1 x Chassis Intruder
2 x Front LAN LED
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x VROC Key Header
1 x Q-Code/Port 80 LED
Back I/O Ports
2 x USB 3.0 ports
1 x VGA port
2 x RJ-45 GbE LAN ports
1 x RJ-45 Mgmt LAN port
Rear Switch/LED:
1 x Power switch
1 x Message LED
1 x HDD LED
1 x Location LED
1 x BMC LED
1 x P5V LED
Management Solution
ASUS Control Center Enterprise (Optional)
Optional ASMB9-iKVM for KVM-over-Internet
Weight
Gift Box (1-in-1)
Net Weight : 0.97 KG
Gross Weight : 1.625 KG
Bulk Pack (10-in-1)
Net Weight : 9.7 KG
Gross Weight : 13.015 KG
Environment
Operation temperature: 10°C ~ 35°C
Non operation temperature: -40°C ~ 70°C
Non operation humidity: 20% ~ 90% (Non condensing)
Accessories
I/O Shield
1 x SATA 6Gb/s cable
1 x Supporting DVD
1 x LGA3647 carrier
Monitoring
CPU Temperature
Fan RPM
Note
* Please refer to www.asus.com for latest momory AVL update
* EEB Mounting Hole Locations
