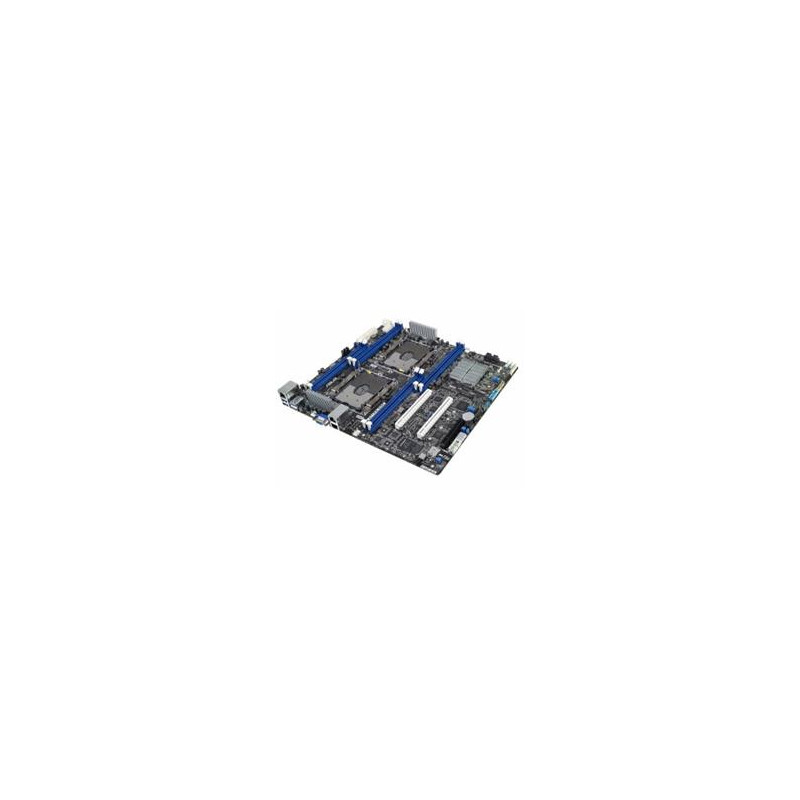

ASUS Intel 2xSocket P (LGA 3647) , C621, 8DIMM, 3PCIe, 14SATA+2M.2, 4*i210AT+1Mgt LAN, IPMI, ATX-like (12x10.5)

Processor / System Bus 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family UPI (10.4 GT/s) *Refer to support page for more information Core Logic Intel® Lewisburg PCH C621 Memory Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 4096GB LR-DIMM 3DS Memory Type : 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. Expansion Slots Total Slot : 3 Slot Location 1 : PCI-E x8 Slot Location 3 : PCI-E x16 Slot Location 5 : PCI-E x16 Form Factor CEB (12"x10.5", 305mm x 267mm) ASUS Features ASUS Fan Speed control technology ASUS Control Center Storage SATA Controller : Intel® C621 8 x SATA 6Gb/s ports(8 by 2 mini-SAS Connector)+1 x M.2 connector by 2 Mini-SAS HD connectors Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 2 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 8 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x M.2 Connector , NGFF Type : 22110/2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED Back I/O Ports 4 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED Management Solution ASUS Control Center Enterprise (Optional) On-Board ASMB9-iKVM for KVM-over-Internet Weight Gift Box (1-in-1) Net Weight : 1.24 KG Gross Weight : 2.32 KG Bulk Pack (10-in-1) Net Weight : 1.24 KG Gross Weight : 16.26 KG Environment Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% (Non condensing) Accessories I/O Shield 1 x Supporting DVD 2 x LGA3647 carrier Monitoring CPU Temperature Fan RPM
