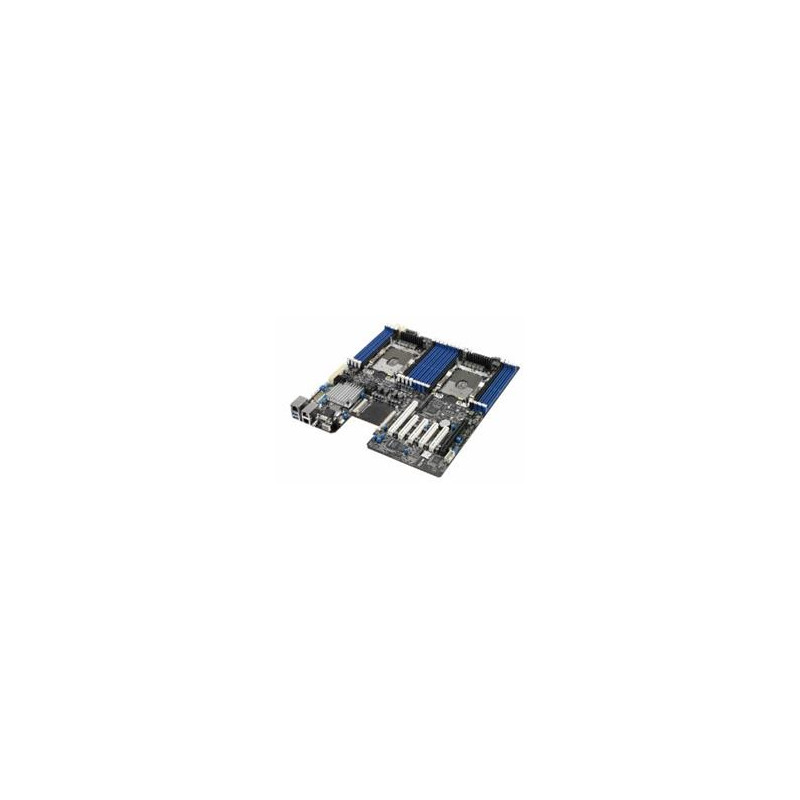

ASUS Intel 2xSocket P (LGA 3647) , C621, 16DIMM, 6PCIe+1OCP, 11SATA+2M.2, 1*Dual i350+1Mgt LAN, IPMI, EEB(12*13)

Processor / System Bus 2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family *Refer to support page for more information UPI (10.4 GT/s) Core Logic Intel® C621 PCH Memory Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM/Maximum up to 1024GB LRDIMM/Maximum up to 2048GB LR-DIMM 3DS Memory Type : DDR4 2933/2666/2400 RDIMM DDR4 2933/2666/2400 LRDIMM DDR4 2933/2666/2400 LR-DIMM 3DS Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU. *2933MHz will drop to 2666MHz when using 2DPC configurations. Expansion Slots Slot Location 1 : PCI-E x16 (Gen3 X16 Link) Slot Location 2 : PCI-E x8 (Gen3 X8 Link) Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x8 (Gen3 X8 Link) Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link) Additional Slot 1 : OCP 2.0 module support (X16 Gen3 Link) Form Factor SSI EEB, 12” x 13” ASUS Features ASUS Fan Speed control technology ASUS Control Center Rack Optimized (Dedicated for Rack) Storage SATA Controller : Intel® C621 11 x SATA3 6Gb/s ports (8 by 2 Mini-SAS Connector) 2 x M.2 connector (2280/2260/2242) (SATA 6Gb/s & PCIe® Gen3 x4 link) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) Intel®VROC (For Linux/Windows) (Support Software RAID ) Optional kits Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Graphic Aspeed AST2500 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 2 x USB 2.0 pin header , Up to 4 Devices 9 x Fan Header , 4pin 1 x SMBus 2 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x VROC Key Header 1 x Micro SD Card Slot 2 x M.2 Connector , NGFF Type : 2280/2260/2242 Back I/O Ports 2 x USB 3.0 ports 1 x VGA port 2 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN port Rear Switch/LED: 1 x Power switch 1 x Q-Code/Port 80 LED 1 x Message LED 1 x HDD LED 1 x Location LED Management Solution ASUS Control Center Enterprise (Optional) ASMB9-iKVM for KVM-over-Internet Weight Gift Box (1-in-1) Net Weight : 1.4 KG Gross Weight : 2.425 KG Bulk Pack (10-in-1) Net Weight : 14 KG Gross Weight : 19.05 KG Environment Operation temperature: 10? ~ 35? Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) Accessories I/O Shield 1 x SATA 6Gb/s cable 1 x Supporting DVD 2 x LGA3647 carrier Monitoring CPU Temperature Fan RPM
