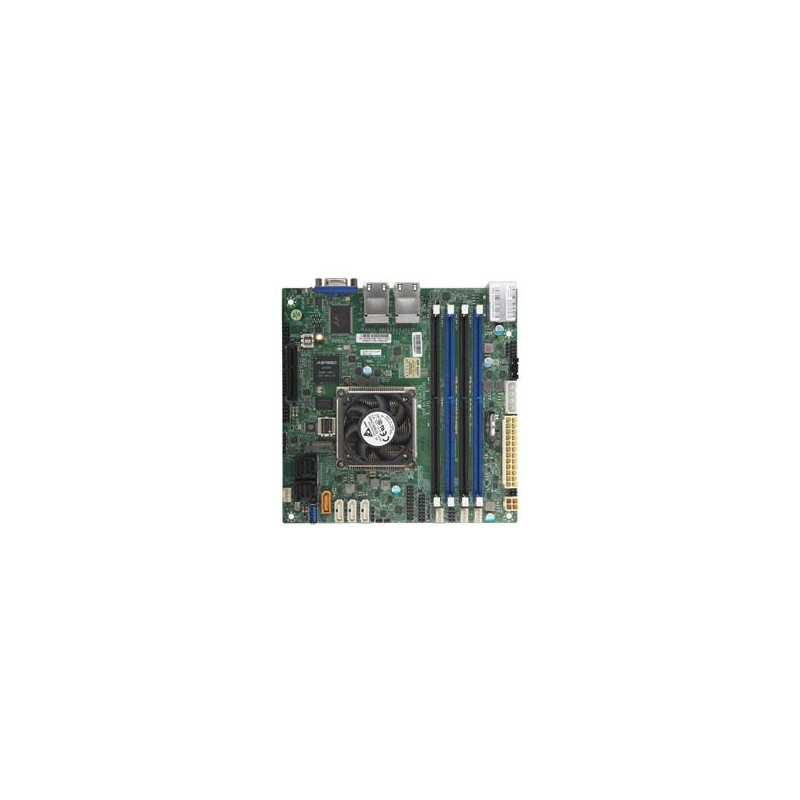

SUPERMICRO mini-ITX MB Atom C3758 (8-core), 4x DDR4 ECC DIMM, 12xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI

Mini-ITX základní deska s procesorem Intel Atom C3758 (8 jader) a TDP 25W. Podporuje až 256 GB DDR4 ECC RAM v 4 slots. Obsahuje 12 SATA3 portů, 1 PCI-E 3.0 x4 slot a 4 síťové porty 1GbE. Гránována IPMI pro vzdálenou správu.
Na objednávku
15 762 Kč bez DPH 13 026 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1440175
MBD-A2SDI-8C+-HLN4F-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
  1. Intel Atom Processor C3758,
    Single Socket FCBGA1310 supported,
    CPU TDP support 25W
  2. Intel Quick Assist Technology
  3. Up to 256GB Registered ECC DDR4-2400MHz,
    Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots
  4. Expansion slots:
    1 PCI-E 3.0 x4,
    M.2 Interface: PCI-E 3.0 x2 and SATA
    M.2 Form Factor: 2242, 2280
    M.2 Key: M-Key
  5. 4 GbE LAN ports
  6. 12 SATA3 (6 Gbps) ports
  7. Supports 12V DC power input
  8. I/O: 1 VGA, 1 COM, TPM header
  9. System on Chip
  10. 1 USB 3.0 (Type-A)
    4 USB 2.0 (2 rear, 2 via headers)
Resources
BMC Firmware
Download Driver CD
Download the Latest Drivers and Utilities
Motherboard Manual
OS Compatibility
Quick Reference Guide
Tested AOC List
Tested HDD / SSD List
Tested M.2 List
Tested Memory List
Update Your BIOS
Optimization
Specifications

Product SKUs

MBD-A2SDi-8C+-HLN4F
  • A2SDi-8C+-HLN4F


Physical Stats

Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)


Processor

CPU
  • Intel® Atom® Processor C3758
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 25W TDP
Core
  • Up to 8 cores, 8 threads / 16MB Cache
Note
  •


System Memory

Memory Capacity
  • 4 DIMM slots
  • Up to 256GB ECC RDIMM, DDR4-2400MHz; Up to 64GB ECC/non-ECC UDIMM, DDR4-2400MHz
Memory Type
  • 2400/2133/1866/1600MHz ECC/non-ECC DDR4 RDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
  • System on Chip
SATA
  • SoC controller for 12 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC
Network Controllers
  • Quad LAN with Intel® C3000 SoC, 1GbE


Input / Output

LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 1 USB 3.2 Gen1 port(s) (1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header

Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x4
M.2
  • M.2 Interface: SATA; PCI-E 3.0 x2
  • Form Factor: 2280, 2242
  • Key: M-Key


System BIOS

BIOS Type
  • AMI UEFI
BIOS Features
  • UEFI 2.4
  • SMBIOS 2.7.1


Management

Software
  • SuperDoctor® 5, NMI, KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software
  • SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection


PC Health Monitoring

Voltage
  • VBAT, System temperature, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 fans with tachometer monitoring, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
Temperature
  • CPU thermal trip support
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors, System level control, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control)
Other Features
  • WOL, UID, System level control, RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, 12V DC or ATX Power Source, SDDC, Intel® QuickAssist Technology, Innovation Engine, 4-pin 12v DC power connector


Operating Environment

Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)

Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SDi-8C+-HLN4F 1 A2SDi-8C+-HLN4F Motherboard
I/O Shield MCP-260-00084-0N •  1 Standard I/O Shield for A2SDi-8C+-HLN4F
SATA Cables CBL-0044L •  2 57.5CM SATA FLAT S-S PBF
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-A2SDi-8C+-HLN4F 1 A2SDi-8C+-HLN4F Motherboard
I/O Shield MCP-260-00084-0N •  1 Standard I/O Shield for A2SDi-8C+-HLN4F
QRG MNL-1951-QRG 1 Motherboard Quick Reference Guide
SATA Cables CBL-SAST-0616 •
CBL-0044L • 		 2
4		 MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG
57.5CM SATA FLAT S-S PBF
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00079-0N
MCP-260-00085-0B		 --
--		 1U I/O Shield for A2SDi-8C+-HLN4F in SC813/512 Chassis
1U I/O Shield for A2SDi-8C+-HLN4F in SC505/504 Chassis
