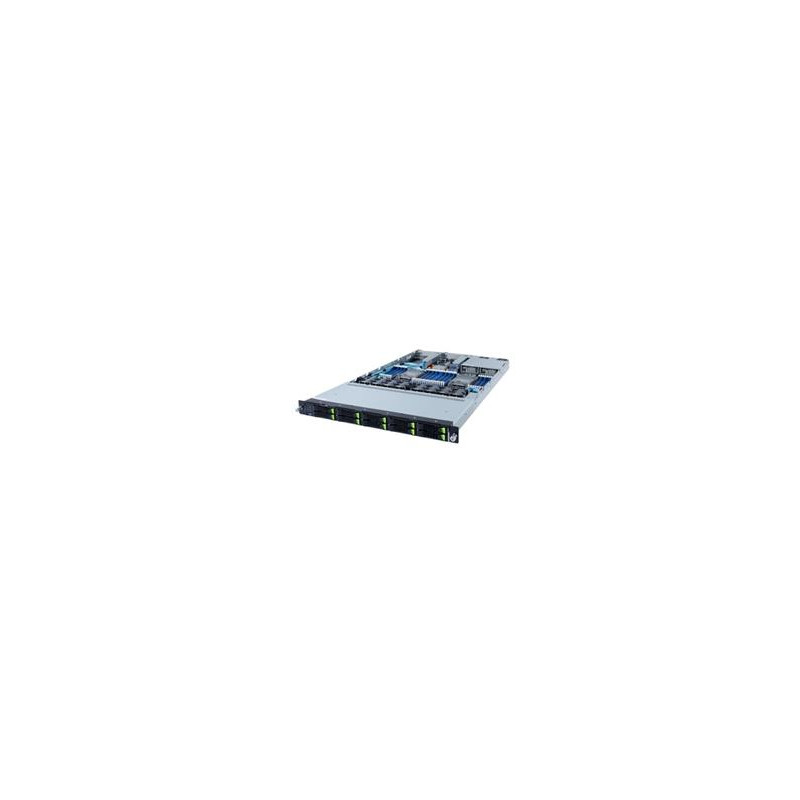

Gigabyte server R182-NA1 2x 4189, 32x DDR4 DIMM, 10xU.3 SATA, 2x 1GbE i350, OCP3+OCP2, IPMI, 2x 1300W plat

Server s procesory Intel Xeon 3. generace, nabízí 32 DIMM slotů pro paměť DDR4, 10 hot-swappable SATA/NVMe slotů, OCP 3.0 a 2.0 sloty, a robustní správu přes IPMI. Obsahuje redundantní 1300W napájení pro garantovanou dostupnost.
Na objednávku
76 704 Kč bez DPH 63 392 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
GIGABYTE
1433921
6NR182NA1MR-00
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
  • 3rd Gen. Intel® Xeon® Scalable Processors
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture supported
  • Intel® C621A Express Chipset
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2)
  • 1 x Dedicated management port
  • 10 x 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays
  • 2 x 7-pin SATA DOM supported
  • 2 x PCIe Gen4 x16 expansion slots
  • 1 x OCP 3.0 Gen4 x16 mezzanine slot
  • 1 x OCP 2.0 Gen3 x8 mezzanine slot
  • 1300W (240V) 80 PLUS Platinum redundant power supply
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 780
Motherboard
MR92-FS1
CPU
3rd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
10nm technology, CPU TDP up to 270W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 4189
Socket P+
Chipset
Intel® C621A Express Chipset
Memory
32 x DIMM slots
DDR4 memory supported only
8-channel memory architecture per processor
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
2 x 1Gb/s LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Audio
N/A
Storage
10 x 2.5" SATA/SAS/Gen4 NVMe hot-swappable HDD/SSD bays

SAS card is required for SAS devices support
SAS
N/A
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
Riser Card CRS101E:
- 1 x PCIe x16 slot (Gen4 x16), Full-height half-length

Riser Card CRS101G:
- 1 x PCIe x16 slot (Gen4 x16), Full-height half-length

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supported NCSI function
Internal I/O
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x HDD back plane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery switch
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
10 x 2.5" SATA/SAS/NVMe hybrid ports
Bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
1+1 80 PLUS Platinum 1300W redundant PSU

AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz

DC Input:
240Vdc/ 6.5A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.2 ( x64) or later
Red Hat Enterprise Linux 8.3 ( x64) or later
Red Hat OpenStack Platform 16

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 20.04 LTS (x64) or later
Ubuntu 20.04.1 LTS (x64) or later

VMware ESXi 6.7 Update3 P03
VMware ESXi 7.0 Update2

Citrix Hypervisor 8.2.0
System Fans
8 x 40x40x56mm (29,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R182-NA1
2 x CPU heatsinks
1 x Rail kit
Part Numbers
Barebone package: 6NR182NA1MR-00
Part Numbers:
- Motherboard: 9MR92FS1NR-00
- VROC module: 25FD0-R181N0-10R
(Supported for Intel SSD only, in option)
- Rail kit: 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-453204-M1R
- Back plane board: 9CBP10A5NR-00
- Power supply: 25EP0-213002-F3S
- Riser card - CRS101E: 9CRS101ENR-00
- Riser card - CRS101G: 9CRS101GNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
