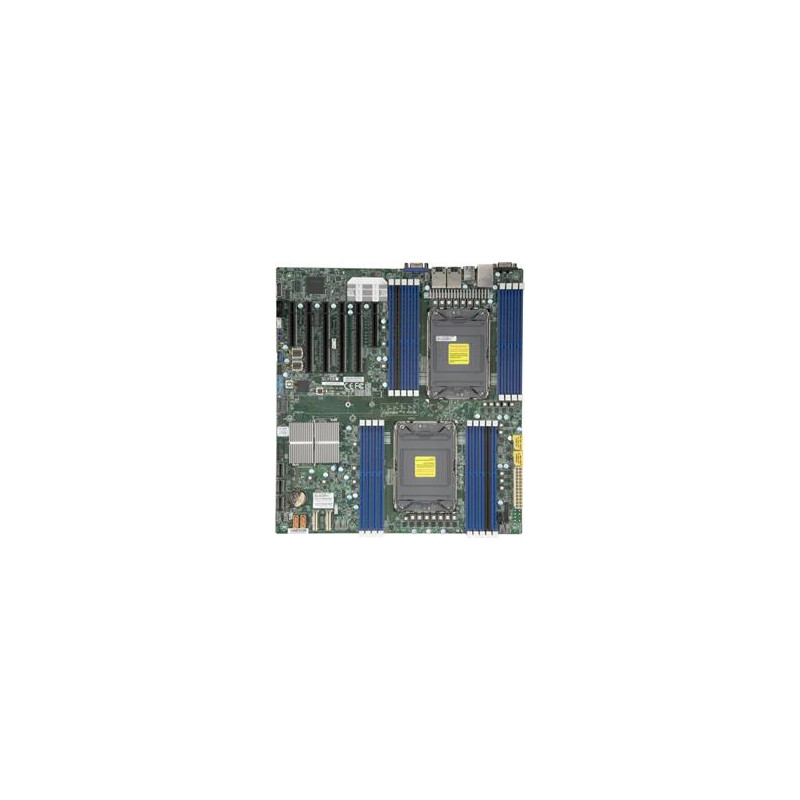

SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk

Matice pro servery podporující procesory 3. generace Intel Xeon Scalable s dual socketem LGA-4189. Maximální kapacita paměti 4TB DDR4 ECC ve 18 DIMM slotech. Disponuje 4 NVMe a 14 SATA3 porty s RAID podporou. Obsahuje 6 slotů PCIe 4.0, 2x 1Gb LAN a IPMI. E-ATX form factor.

Skladem 1 ks

22 301 Kč bez DPH 18 430 Kč

Poptat zboží

Hlídat cenu

Přidat k porovnání

Přidat k oblíbeným

Značka SUPERMICRO

Kód 1277947

P/N MBD-X12DPi-N6-B 672042441594

Záruka 36 měsíců

Poradna a návody
Vhodné pro

Popis produktu

3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Intel® C621A
Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)
M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel® X550
2 VGA (1 rear bezel, 1 front panel) ports

Specifications


Product SKUs

MBD-X12DPi-NT6	X12DPi-NT6



Physical Stats

Form Factor	E-ATX
Dimension	12" x 13" (30.48cm x 33.02cm)



Processor

CPU	3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core	Up to 40 cores



System Memory

Memory Capacity	18 DIMM slots Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type	3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes	LRDIMM: 256GB RDIMM: 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)



On-Board Devices

Chipset	Intel® C621A
SATA	Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2600 BMC
Network Controllers	Dual LAN with 10GBase-T with Intel® X550



Input / Output

SATA	14 SATA3 (6Gbps) port(s)
LAN	2 RJ45 10 Gigabit Ethernet LAN ports
USB	7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) 2 USB 2.0 port(s) (2 via header)
Video Output	2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
TPM	1 TPM Header


Expansion Slots

PCI-E	4 PCI-E 4.0 x16, 2 PCI-E 4.0 x8
M.2	M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key



System BIOS

BIOS Type	AMI UEFI



Management

Software	SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support



PC Health Monitoring

Voltage	VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED
FAN	8x 4-pin fan headers (up to 8 fans) PWM fan speed control
Other Features	WOL UID RoHS Node Manager Support Dual Cooling Zones CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Chassis intrusion header ATX Power connector ACPI power management SDDC RoT NCSI header



Operating Environment

Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12DPi-NT6	1	X12DPi-NT6 Motherboard
CPU carrier	SKT-1205L-P4IC-FXC	2	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables	CBL-0044L •	2	57.5 cm SATA FLAT S-S PBF
I/O Shield	MCP-260-00042-0N •	1	STD I/O SHIELD

Parts List (Retail Package)
Name	Part Number	Qty	Description
Motherboard	MBD-X12DPi-NT6	1	X12DPi-NT6 Motherboard
CPU carrier	SKT-1205L-P4IC-FXC	2	CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables	CBL-0044L • CBL-0476L •	2 1	57.5 cm SATA FLAT S-S PBF IPASS to 4 SATA cable
I/O Shield	MCP-260-00042-0N •	1	STD I/O SHIELD
Quick Reference Guide	MNL-2233-QRG	1	X12DPi-N(T)6 Quick Reference Guide

Optional Parts List
Name	Part Number	Qty	Description
TPM security module (optional, not included)	AOM-TPM-9671H AOM-TPM-9671V AOM-TPM-9670V AOM-TPM-9670H	1 1 1 1	SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
