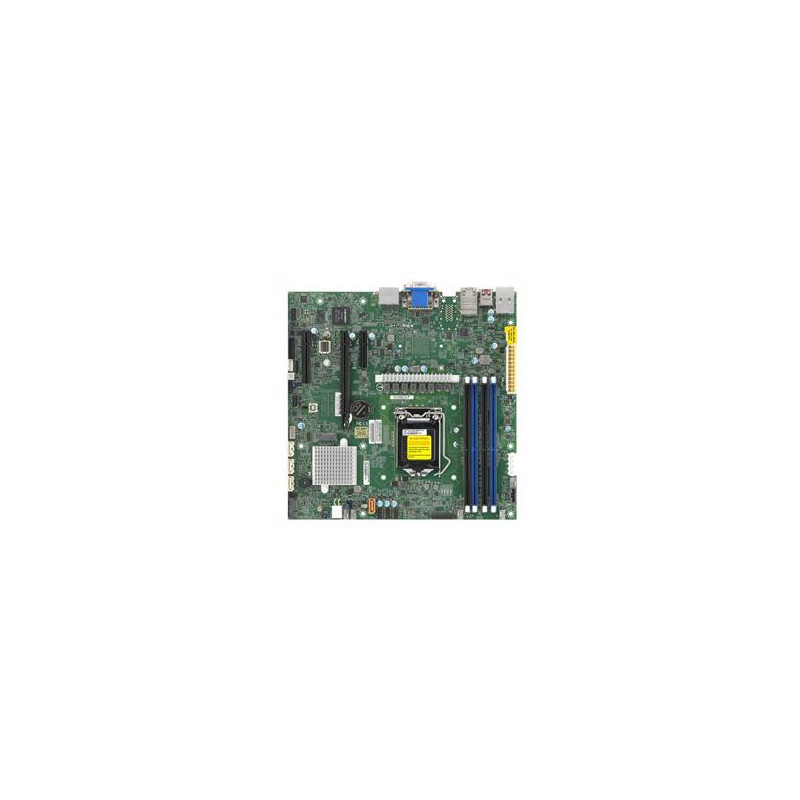

SUPERMICRO MB LGA1200 1U(core10g), Q470,4xDDR4,4xSATA3,M.2,3xPCIe3.0 (16 4 4),2xDP,DVI,VGA,Audio,2x1Gb,IPMI

Deska podporuje procesory Intel 10. generace s TDP až 125W, 4 sloty pro DDR4 až 128GB, 4 SATA3 porty a rozhraní M.2. Nabízí 3 PCIe 3.0 sloty, dva DisplayPorty, DVI, VGA a audio konektory. podporuje LAN a IPMI. Důležité pro servery a náročné aplikace.
Na objednávku
11 015 Kč bez DPH 9 103 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1235121
MBD-X12SCZ-QF-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Key Features
  1.
  2. 10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP
  3. Single LAN with Intel® PHY I219LM LAN controller
    Single LAN with Intel® Ethernet Controller I210-AT
  4. Intel® Q470
  5. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
  6. 1 PCI-E 3.0 x16,
    1 PCI-E 3.0 x4 (in x8 slot),
    1 PCI-E 3.0 x4
    1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
    1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
  7. Intel® Q470 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  8. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port



Specifications

Product SKUs

MBD-X12SCZ-QF
  • X12SCZ-QF


Physical Stats

Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)


Processor

CPU
  • 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  • A graphic integrated CPU is required to have onboard video from the DVI and DP ports
Core
  • Up to 10 cores
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-2933MHz
Memory Type
  • 2933/2666/2400/2133MHz
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V


On-Board Devices

Chipset
  • Intel® Q470
SATA
  • Intel® Q470E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500 BMC
Audio
  • ALC 888S HD Audio
Graphics
  • Intel® HD Graphics
  • ASPEED AST2500 BMC
Network Controllers
  • Single LAN with Intel® PHY I219LM LAN controller
  • Single LAN with Intel® Ethernet Controller I210-AT


Input / Output

SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.1 Gen2 port(s) (2 via header; 4 rear type A)
  • 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header)
  • 6 USB 2.0 port(s) (6 via header)
Video Output
  • 1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header & Chip both

Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x4,
  • 1 PCI-E 3.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4; 1 CNVi/PCI-E 3.0 x1
  • Form Factor: 2280/22110, 2230
  • Key: M-Key, E-Key


System BIOS

BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.6
  • RTC (Real Time Clock) Wakeup


Management

Software
  • SuperDoctor® 5, SUM, AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • ACPI Power Management, ATX Power connector, +12V DC Power Input


PC Health Monitoring

Voltage
  • VBAT, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
Temperature
  • Thermal Control for 5 Fan Connectors
FAN
  • 5x 4-pin fan headers (up to 5 fans)
  • Fan speed control
  • Dual Cooling Zone
  • 5 fans with tachometer status monitoring
Other Features
  • UID
  • RoHS
  • M.2 NGFF connector
  • Dual Cooling Zones
  • Chassis intrusion header
  • ATX Power connector
  • ACPI power management
  • 8-pin 12v DC power connector
  • 12V DC or ATX Power Source


Operating Environment

Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-QF 1 X12SCZ-QF Motherboard
I/O Cables CBL-0044L •  2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N •  1 Standard I/O Shield for X12SCZ with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCZ-QF 1 X12SCZ-QF Motherboard
I/O Cables CBL-0044L •  4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00093-0N •  1 Standard I/O Shield for X12SCZ with EMI Gasket
QRG MNL-2257-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00094-0N -- 1U I/O Shield for X12SCZ with EMI Gasket in CSE-512/813
Serial Port Cable CBL-CDAT-0604 -- Dual Serial Port cable with bracket 40cm
CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
USB3.1 Cable CBL-CUSB-0835 •  -- Dual USB3.1 Type A Cable with Bracket
