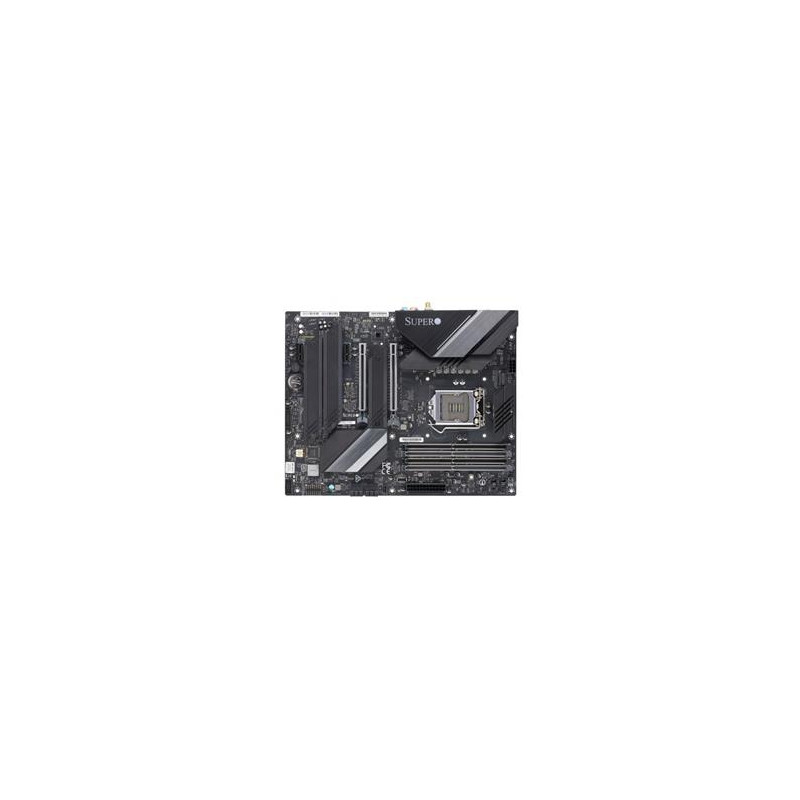

SUPERMICRO MB LGA1200 125W, Z590, 4x DDR4,4xSATA3, 2xPCIe4.0 x16 2x 3.0 x1, 3x M.2, 10Gb+1Gb LAN+WiFi, DP+HDMI, Audio

Základní deska podporující procesory Intel 11. generace, TDP až 125W. Obsahuje 4 DIMM pro DDR4 paměti, 4 SATA3 porty, 2 PCIe 4.0 x16 sloty a 3 M.2 rozhraní. Integrované 10Gb a 1Gb LAN, HDMI a DisplayPort výstupy. Podpora Wi-Fi 6 a audio 7.1 HD. Ideální pro výkonné pracovní stanice.
Na objednávku
13 106 Kč bez DPH 10 831 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1151197
MBD-C9Z590-CGW-O
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Key Features
  1. 11th Generation Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  2. Intel® Z590
  3. Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  4. 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
    M.2 Interface: 2 PCI-E 3.0 x4 and 1 PCI-E 4.0 x4
    M.2 Form Factor: 2260/2280/22110  M.2 Key: M-Key
    2 attached to PCH by PCI-E3.0x 4, 1 attached to CPU by PCI-E4.0x 4), support RAID 0,1 and 5 by RST; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module
  5. 1 HDMI port, 1 DP (DisplayPort) port, DP version 1.4a, HDMI version 2.0b
  6. Single LAN with Intel® single Ethernet PHY i219V 1Gb
    Single LAN with Marvell AQC113C 10Gb
Specifications

Product SKUs

MBD-C9Z590-CGW
  • C9Z590-CGW

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU
  • 11th Generation Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP

System Memory

Memory Capacity
  • Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
Memory Type
  • 128GB DDR4 Unbufferred Non ECC UDIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V

On-Board Devices

Chipset
  • Intel® Z590
Network Controllers
  • Single LAN with Intel® single Ethernet PHY i219V
    1Gb
    Single LAN with Marvell AQC113C
    10Gb
Audio
  • ALC 1220 7.1 HD Audio
Graphics
  • DP version 1.4a, HDMI version 2.0b

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 ports (4 rear + 2 via headers)
  • 2 USB 3.2 Gen1 ports (2 via headers)
  • 2 USB 3.2 Gen2 ports (2 Rear Type A
  • 3 USB 3.2 Gen2x2 ports (2 Type C)
Video Output
  • 1 HDMI port, 1 DP (DisplayPort) port,
  • DP version 1.4a, HDMI version 2.0b
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
M.2
  • M.2 Interface: 2 PCI-E 3.0 x4 and 1 PCI-E 4.0 x4
  • Form Factor: 2260/2280/22110
  • Key: M-Key
  • 2 attached to PCH by PCI-E3.0x 4, 1 attached to CPU by PCI-E4.0x 4), support RAID 0,1 and 5 by RST; M.2-E1 port pre-installed one Intel Wi-Fi 6(802.11ax)+BT5.1 module

System BIOS

BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.0
  • Plug and Play (PnP)
  • BIOS rescue hot keys
  • SMBIOS 3.0 or later
  • Riser card auto-detection support

Management

Software
  • SuperDoctor® 5
System Management Software
  • SuperDoctor 5
Power Configurations
  • ACPI Power Management

PC Health Monitoring

Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Temperature
  • N/A
LED
  • N/A
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-C9Z590-CGW 1 C9Z590-CGW Motherboard
    --

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-C9Z590-CGW 1 C9Z590-CGW Motherboard
Quick Reference Guide MNL-2335-QRG 1 C9Z590-CG(W) Quick Reference Guide
Driver CD   1 C9Z590-CG(W) Driver CD
SATA Cables CBL-SAST-1000-2 2 SATA Cables
SATA Cables CBL-SAST-1001-2 2 Right-Angle SATA Cables
BACK PLATE(I/O Shield) MCP-260-00161-0N 1 C9Z590-CG(W) I/O shield
S-Connector JMP-0010L-0000-PRX 1 S-connector (Front Control Panel Connector/Adapter)
Intel WiFi6+BT5.1 Antenna CBL-ANTDB-SMA 2 WiFi+BT Antenna


Chassis (Optimized for C9Z590-CGW)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
         SCGS5A-754K
 SCGS5A-753B
 SC732D3-1200B
 SC732D3-903B

 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
