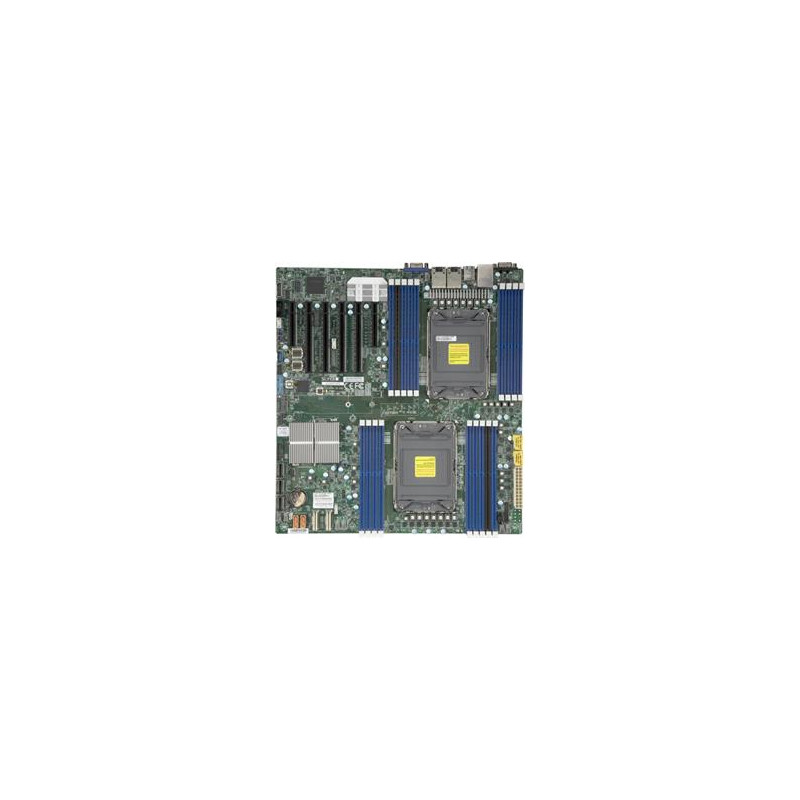

SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 10Gb LAN,IPMI

Product SKUs MBD-X12DPi-NT6 X12DPi-NT6 Physical Stats Form Factor E-ATX Dimensions 12`" x 13" (30.48cm x 33.02cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only. Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 256GB LRDIMM: 256GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with 10GBase-T with Intel® X550 Input / Output SATA 14 SATA3 (6Gbps) ports LAN 2 RJ45 10 Gigabit Ethernet LAN ports USB 2 USB 2.0 ports (2 via headers) 7 USB 3.2 Gen1 ports (4 rear + 2 via headers + 1 Type A) Video Output 2 VGA (1 rear bezel, 1 front panel) ports Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16 M.2 M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, CPU temperature, LAN temperature, Memory temperature, Memory Voltages, Monitors CPU voltages, PCH temperature, System temperature, VBAT, VRM temperature Temperature N/A LED BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID, WOL Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
