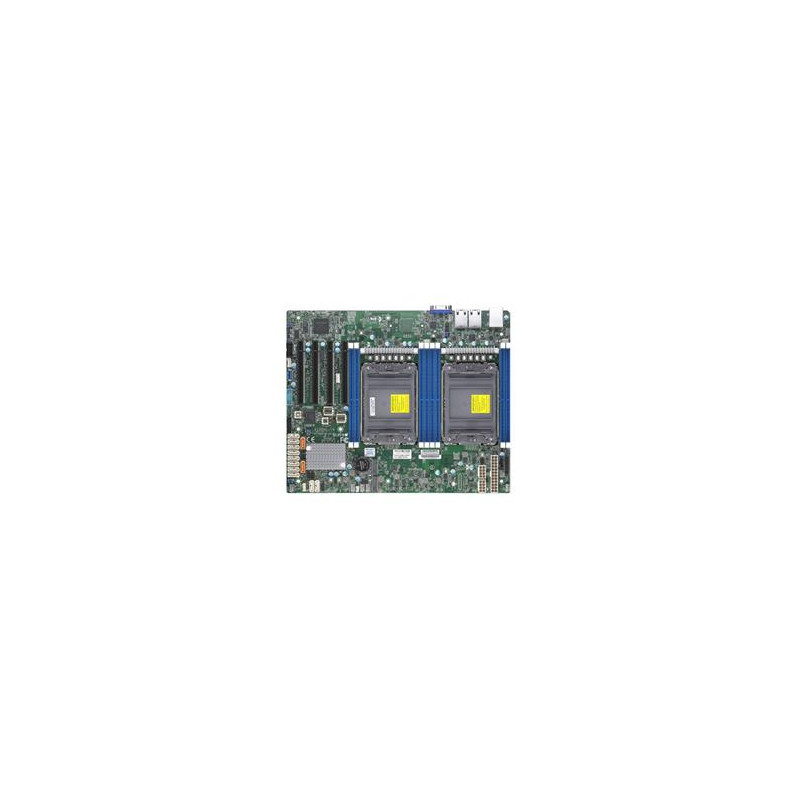

SUPERMICRO MB 2xLGA4189, iC621A, 8x DDR4 ECC, 2xNVMe, 12xSATA3, 2x M.2, 4x PCIe4.0, 2x 1Gb LAN,IPMI

Product SKUs MBD-X12DPL-i6 X12DPL-i6 Physical Stats Form Factor ATX Dimensions 12.23" x 10" (31.06cm x 25.4cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 10.4 GT/s System Memory Memory Capacity Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 256GBRDIMM: 256GB LRDIMM: 256GB 3DS LRDIMM: 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller Graphics ASPEED AST2600 BMC Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 4.0 x16 M.2 M.2 Interface: 2 PCI-E 4.0 x4 Form Factor: 2280/22110, 2280 Key: M-Key System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog System Management Software IPMICFG SMCIPMITool IPMIView for Linux/Windows Power Configurations ACPI Power Management PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility Temperature CPU thermal trip support, PECI LED BMC/IPMI Heartbeat LED, UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, NCSI header, Node Manager Support, RoT, UID Operating Environment Operating Temperature Range 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
