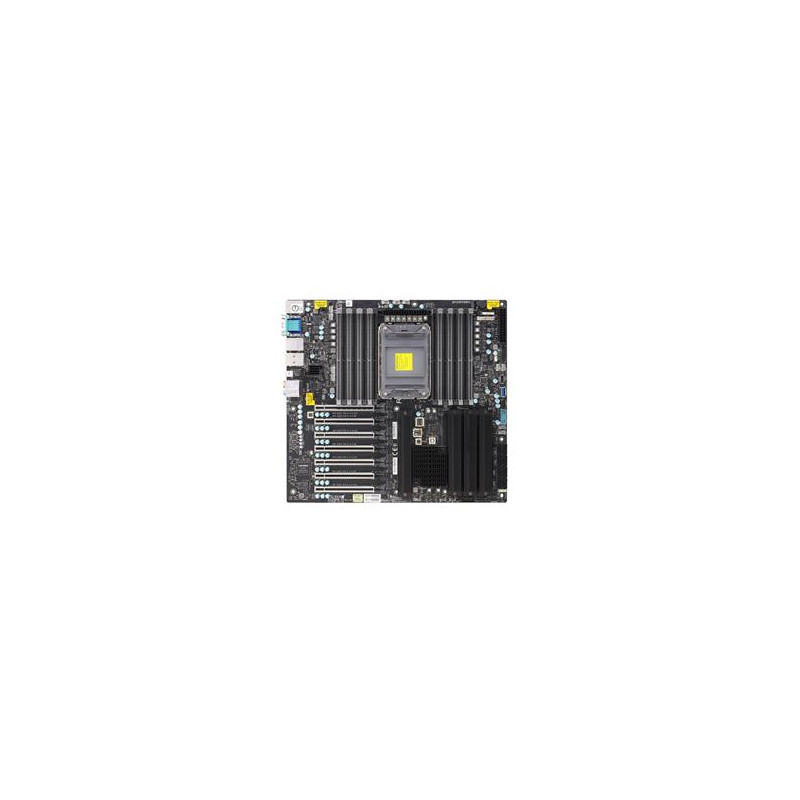

SUPERMICRO MB 1xLGA4189, iC621A, 16x DDR4 ECC, 10xSATA3, 4x M.2, 7x PCIe4.0, 10Gb + 1Gb LAN,IPMI

Product SKUs MBD-X12SPA-TF X12SPA-TF Physical Stats Form Factor E-ATX Dimensions 13" x 12" (33.02cm x 30.48cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots Memory Type N/A DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Marvell AQC113 Single LAN with Realtek RTL8211F PHY (dedicated IPMI) Audio ALC 888S HD Audio Graphics ASPEED AST2500 BMC VGA connector is dedicated for IPMI. Input / Output LAN 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 2.0 ports (2 rear + 2 via headers) 6 USB 3.2 Gen1 ports (4 rear + 2 via headers) 2 USB 3.2 Gen2 ports (1 Type A, 1 Type C) 1 USB 3.2 Gen2x2 ports (1 Type C) Video Output 1 VGA port, VGA connector is dedicated for IPMI. Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM 1 TPM Header Expansion Slots PCI-E 4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot) M.2 M.2 Interface: 4 PCI-E 4.0 x4 Form Factor: 2260/2280/22110 Key: M-Key M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID. System BIOS BIOS Type 256Mb SPI Flash with AMI BIOS BIOS Features ACPI 3.0 / 4.0 SMBIOS 2.7 PCI FW 3.0 RTC (Real Time Clock) Wakeup Management Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support SuperDoctor 5 Power Configurations ACPI Power Management Main Switch Override Mechanism Power-on mode for AC power recovery CPU thermal trip support for processor protection PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI LED CPU / System Overheat LED, Suspend static indicator LED Other Features N/A Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
