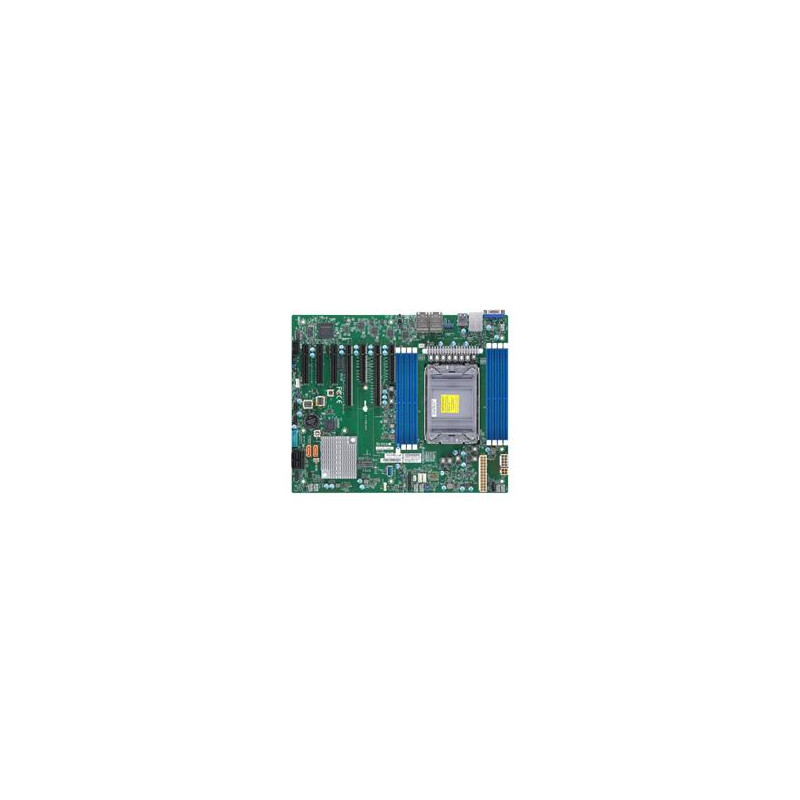

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 10xSATA3, M.2, 7x PCIe4.0, 4x 1Gb LAN,IPMI

Product SKUs MBD-X12SPL-LN4F X12SPL-LN4F Physical Stats Form Factor ATX Dimensions 12.1" x 10" (30.73cm x 25.4cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Quad LAN with Intel® i210 Gigabit Ethernet Controller Graphics ASPEED AST2600 BMC Input / Output SATA 10 SATA3 (6Gbps) ports LAN 4 RJ45 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 2 PCI-E 4.0 x8, 1 PCI-E 4.0 x16, 1 PCI-E 4.0 x8 (in x16 slot)3 PCI-E 3.0 x8 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, System temperature, VBAT Temperature PECI, CPU thermal trip support LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, RoHS, RoT, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
