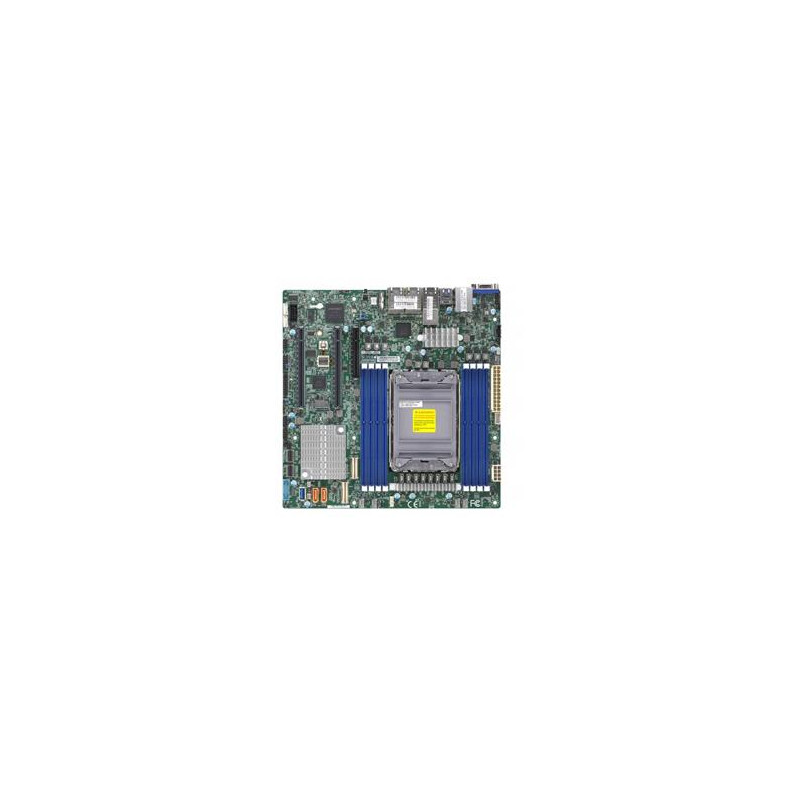

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 4xNVMe, 10xSATA3, M.2, 3x PCIe4.0, 2x 10Gb + 4x 1Gb LAN,IPMI

Product SKUs MBD-X12SPM-LN6TF X12SPM-LN6TF Physical Stats Form Factor microATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots Memory Type N/A DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 64GB, 128GB 3DS LRDIMM: 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Quad LAN with 1GbE with Intel® I350-AM4 Dual LAN with 10GBase-T with Intel® X550 Graphics ASPEED AST2600 BMC Input / Output SATA 10 SATA3 (6Gbps) port LAN 4 RJ45 Gigabit Ethernet LAN ports 2 RJ45 10 Gigabit Ethernet LAN ports USB 6 USB 2.0 ports (2 rear + 4 via headers) 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 4.0 x8, 2 PCI-E 4.0 x16 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
