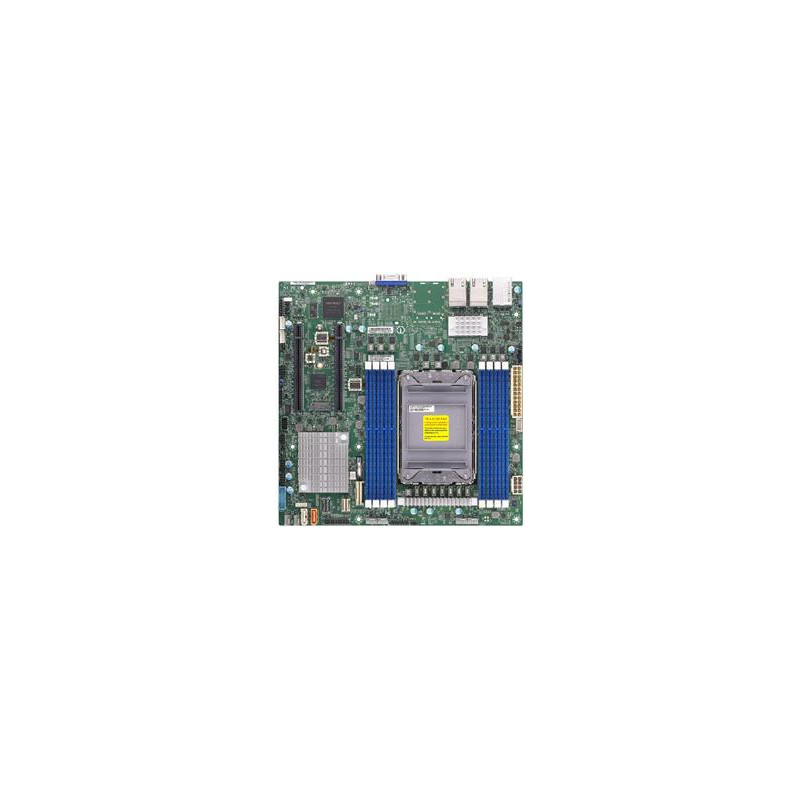

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe 4xSATA3, M.2, 2x PCIe4.0 x16, 4x 1Gb LAN,IPMI

Product SKUs MBD-X12SPZ-LN4F X12SPZ-LN4F Physical Stats Form Factor Micro-ATX Dimensions 9.6" x 9.6" (24.38cm x 24.38cm) Processor/Cache CPU 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Cores / Cache Up to 40 cores System Memory Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots Memory Type 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® C621A SATA Intel® C621A controller for 6 SATA3 (6 Gbps) ports; 4 SATA ports via OCuLink; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Network Controllers Quad LAN with 1GbE with Intel® I350-AM4 Input / Output LAN 4 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (4 via headers) 4 USB 3.2 Gen1 ports (2 rear + 2 via headers) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header & Chip both Expansion Slots PCI-E 2 PCI-E 4.0 x16 M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 System BIOS BIOS Type 256Mb SPI Flash with AMI BIOS BIOS Features ACPI 6.2 UEFI 2.8 SMBIOS 2.8 SMBIOS 3.3 or later Plug and Play (PnP) PCI FW 3.0 Management Software Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations +12V DC Power Input ACPI Power Management ATX Power connector M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT Temperature CPU thermal trip support LED Power LED, UID/Remote UID Other Features 12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12SPZ-LN4F 1 X12SPZ-LN4F Motherboard SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12SPZ-LN4F 1 X12SPZ-LN4F Motherboard SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ QRG MNL-2291-QRG 1 Motherboard Quick Reference Guide CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier Optional Parts List Name Part Number Qty Description 1U I/O Shield MCP-260-00155-0N -- Standard 1U I/O Shield with EMI Gasket TPM security module AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor x8 SlimSAS to 2x U.2 Cable CBL-SAST-0953-1 -- 55CM Slimline x8 to PCIe 2x SFF-8639 x4 SlimSAS to U.2 Cable CBL-SAST-1240A-85 -- 40CM Slimline x4 to PCIe SFF-8639 OCuLink to U.2 Cable CBL-SAST-0956 -- 55CM OCuLink to U.2 Cable with Molex Power Header OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable Chassis (Optimized for X12SPZ-LN4F) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SC515M-R804 SC113MFAC2-605CB
