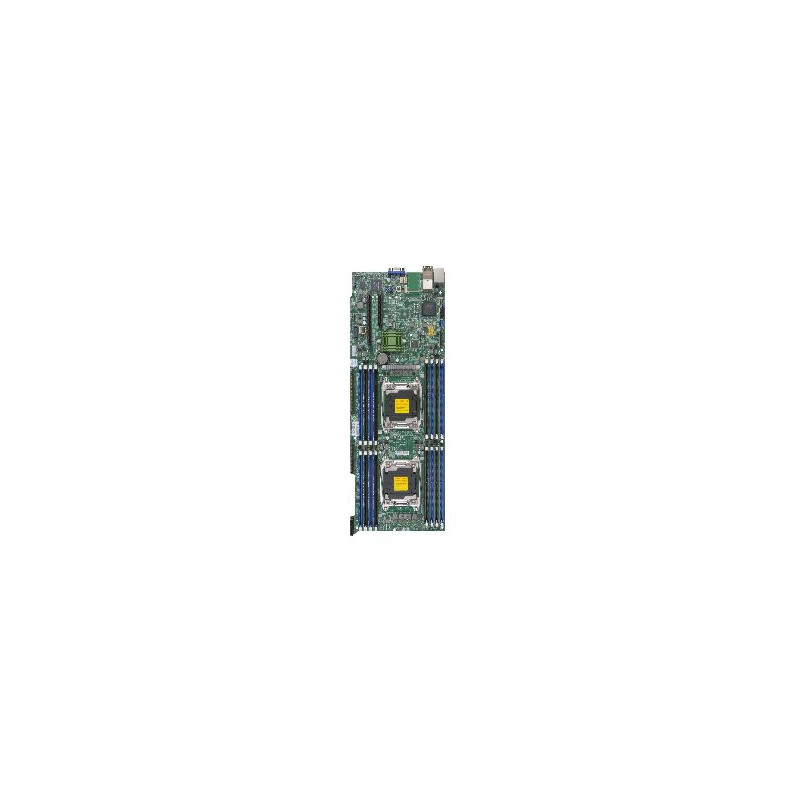

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC,10xSATA3,(PCI-E 3.0 2,2(x16,x8),2x LAN,IPMI
Tato základní deska podporuje procesory Intel Xeon E5-2600 v3/v4 ve dvou socketech LGA 2011, s kapacitou RAM až 2TB DDR4 ECC. Nabízí 10 SATA3 portů, 2 LAN porty a PCI-E 3.0 sloty pro rozšíření. Podporuje IPMI monitoring a má robustní funkce správy. Ideální pro servery a náročné aplikace.
17 254 Kč bez DPH 14 259 Kč
Popis produktu
Product SKUs
MBD-X10DRT-P X10DRT-P
Physical Stats
Form Factor Proprietary Twin
Dimensions 6.8" x 18.86" (17.27cm x 47.9cm)
Processor/Cache
CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
Cores / Cache Up to 22 cores † / Up to 55MB† cache
Note † BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612
SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics Aspeed AST2400 BMC
Input / Output
SATA 10 SATA3 (6Gbps) port
LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 3 USB 3.0 ports (2 rear + 1 Type A)
Video Output 1 VGA port
TPM 1 TPM Header
Expansion Slots
PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8 connector for SMC add-on cards,
1 PCI-E 3.0 x16 connector for SMC add-on cards,
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software IPMI2.0, NMI, SuperDoctor® 5, Watchdog
System Management Software SPM
SUM
SSM
SuperDoctor 5
Power Configurations ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT
FAN 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI
LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
Other Features RoHS
Operating Environment
Operating Temperature Range 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
