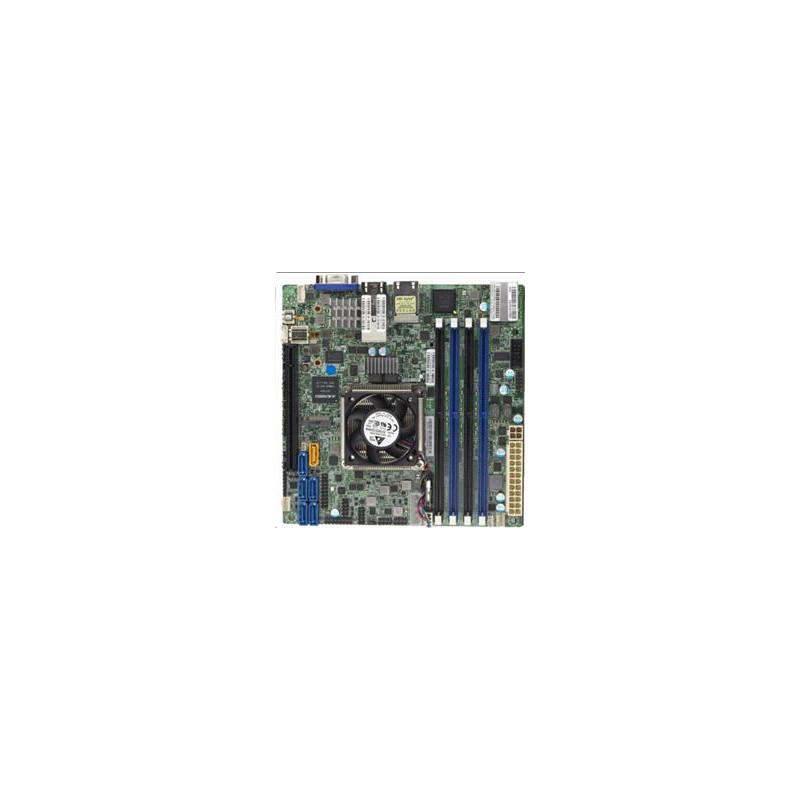

SUPERMICRO mini-ITX MB Xeon D-1518 (4C 8T), 4x DDR4 ECC DIMM,6xSATA, PCI-E 3.0 x16, 2x10GbE LAN, IPMI

Product SKUs MBD-X10SDV-4C+-TLN4F X10SDV-4C+-TLN4F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Xeon® Processor D-1518. Socket FCBGA1667 supported, CPU TDP support 35W Cores / Cache 4 cores, 8 threads / 6MB cache System Memory Memory Capacity Up to 128GB Registered ECC RDIMM, DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots Memory Type 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Network Controllers Dual LAN with 1GbE LAN via Intel® i350-AM2 Dual LAN with 10Gbase-T Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8201N PHY (dedicated IPMI) Graphics Aspeed AST2400 BMC Input / Output SATA 4 SATA3 (6Gbps) port LAN 2 RJ45 10GBase-T ports 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 4 USB 2.0 ports (4 headers, Type A)) 2 USB 3.0 ports (2 rear) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242, 2280 Key: M-Key System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection RTC (Real Time Clock) Wakeup SMBIOS 2.8 UEFI 2.4 Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management CPU Fan auto-off in sleep mode Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, Monitors for CPU Cores, System level control, VBAT FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
