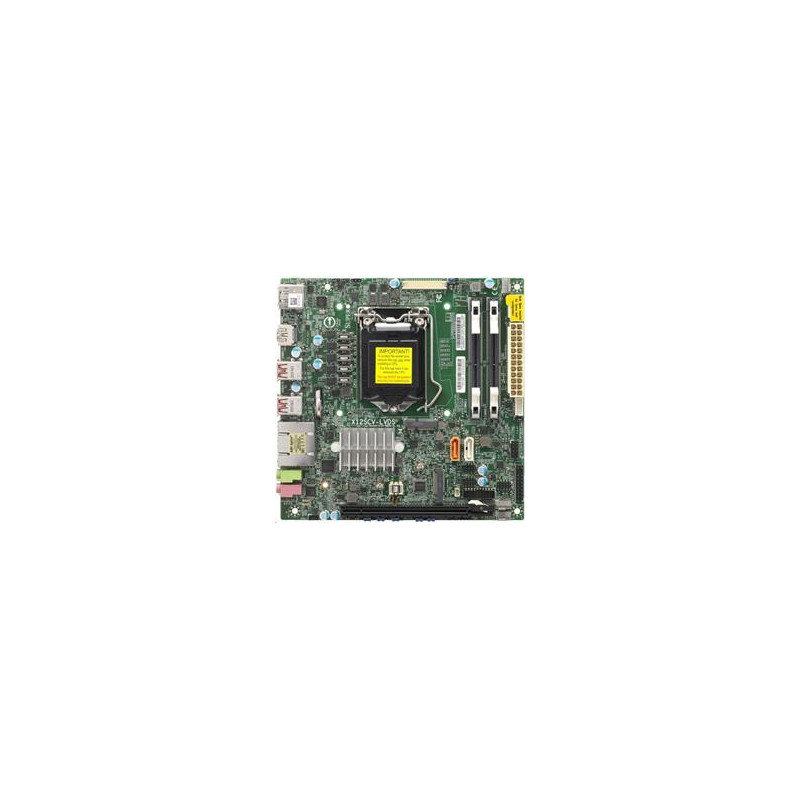

SUPERMICRO MB LGA1200 (Core, Xeon), W480E,2xDDR4 SO-DIMM,2xSATA3,M.2, PCIe 3.0 x16,2xHDMI,DP,LVDS,Audio,2xLAN

Product SKUs MBD-X12SCV-LVDS X12SCV-LVDS Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU 10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP Cores / Cache Up to 10 cores Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support. System Memory Memory Capacity Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots Memory Type 2933/2666/2400/2133MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset Intel® W480E SATA Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1 Network Controllers Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT Audio ALC 888S HD Audio Graphics Intel® HD Graphics 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS Input / Output SATA 2 SATA3 (6Gbps) port LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (4 via headers) 4 USB 3.2 Gen2 ports (4 Rear Type A Video Output 2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port, 3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS Serial Port / Header , 2 COM ports via 1 header TPM TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16 slots (16/NA or 8/8) M.2 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 3042 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup Management Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog System Management Software SuperDoctor 5 Power Configurations +12V DC Power Input ATX Power connector ACPI / ACPM Power Management PC Health Monitoring Voltage +1.8V, +3.3V, 3 -fan status, Chipset Voltage, CPU temperature, HT, Monitors CPU voltages, PCH temperature, System level control, System temperature, VBAT Temperature Thermal Control for 3 Fan Connectors LED Power LED Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS, System level control, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield QRG MNL-2319-QRG 1 Motherboard Quick Reference Guide Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield Optional Parts List Name Part Number Qty Description Serial Port Cable for COM1 and COM2 CBL-CDAT-0604 -- Dual Serial Port Breakout Cable with Bracket 40cm USB Cable CBL-CUSB-0983 -- USB2.0 cable 20cm Serial Port Cable for COM1 and COM2 CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm Chassis (Optimized for X12SCV-LVDS) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X12SCV-LVDS) Server Name SYS-E300-12C
