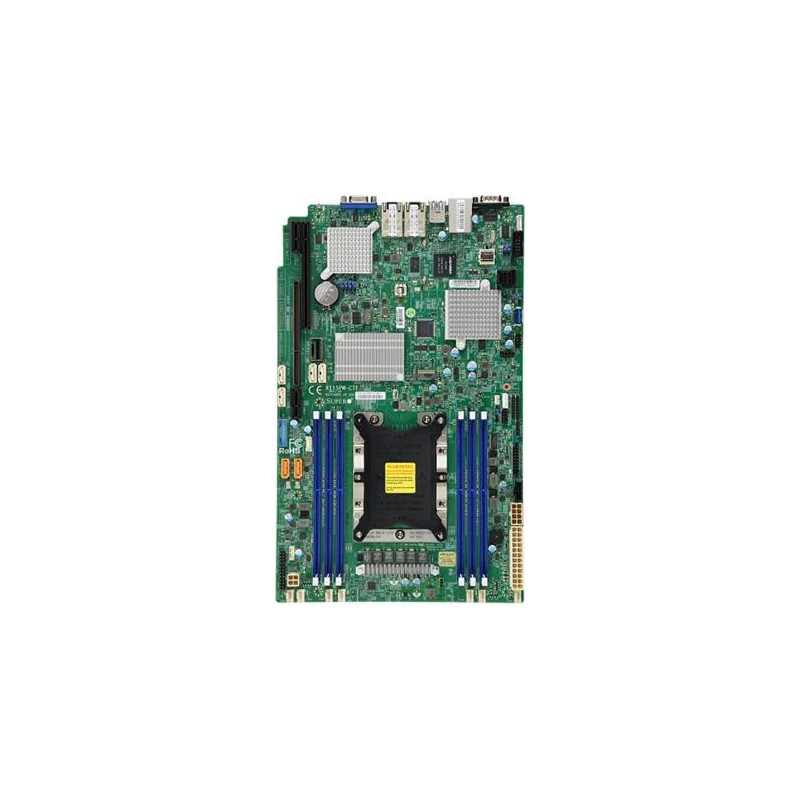

SUPERMICRO MB 1xLGA3647, iC622, 6x DDR4 ECC, 10xSATA3, 4x SAS 3008, 1xM.2, PCI-E 3.0 1,1(x32,x8),2x 10Gb LAN,IPMI, WIO

Product SKUs MBD-X11SPW-CTF X11SPW-CTF Physical Stats Form Factor Proprietary WIO Dimensions 8" x 13" (20.32cm x 33.02cm) Processor/Cache CPU 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP Cores / Cache Up to 28 cores Note BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB, 128GB 3DS LRDIMM: 64GB, 128GB, 256GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C622 SATA Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Broadcom® 3008 SW controller for 4 SAS3 (12Gbs) ports; RAID 0,1,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with 10GBase-T with Intel® X722 + X557 Graphics Aspeed AST2500 BMC Input / Output SATA 10 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T ports USB 7 USB 2.0 ports (2 rear + 5 via headers) 5 USB 3.0 ports (2 rear + 2 via headers + 1 Type A) Video Output 1 VGA port Serial Port / Header 2 COM Ports (1 rear, 1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x8 (in x16 slot), 1 PCI-E 3.0 x32 Left Riser Slot M.2 M.2 Interface: PCI-E 3.0 x4 and SATA Form Factor: 2280, 22110 Key: M-Key Double Height Connector System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.0 RTC (Real Time Clock) Wakeup SMBIOS 3.0 or later Management Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Power Configurations ACPI Power Management Power-on mode for AC power recovery PC Health Monitoring Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 7-fan status, Chassis intrusion header, HT, Monitors CPU voltages, Supports system management utility, VBAT FAN 7x 4-pin fan headers (up to 7 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control Temperature CPU thermal trip support, PECI LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED Other Features ACPI power management, Control of power-on for recovery from AC power loss, RoHS, UID, WOL Operating Environment Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SPW-CTF 1 Supermicro Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF Optional Parts List Name Part Number Qty Description TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor Chassis (Optimized for X11SPW-CTF) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower 1U Heatsink:SNK-P0067PS SC815TQC-605WB SC815TQC-R504WB SCLA15TQC-563W 1U Heatsink:SNK-P0067PS SC825MBTQC-R802WB SC825TQ-R500WB 2U Heatsink:SNK-P0068PS
