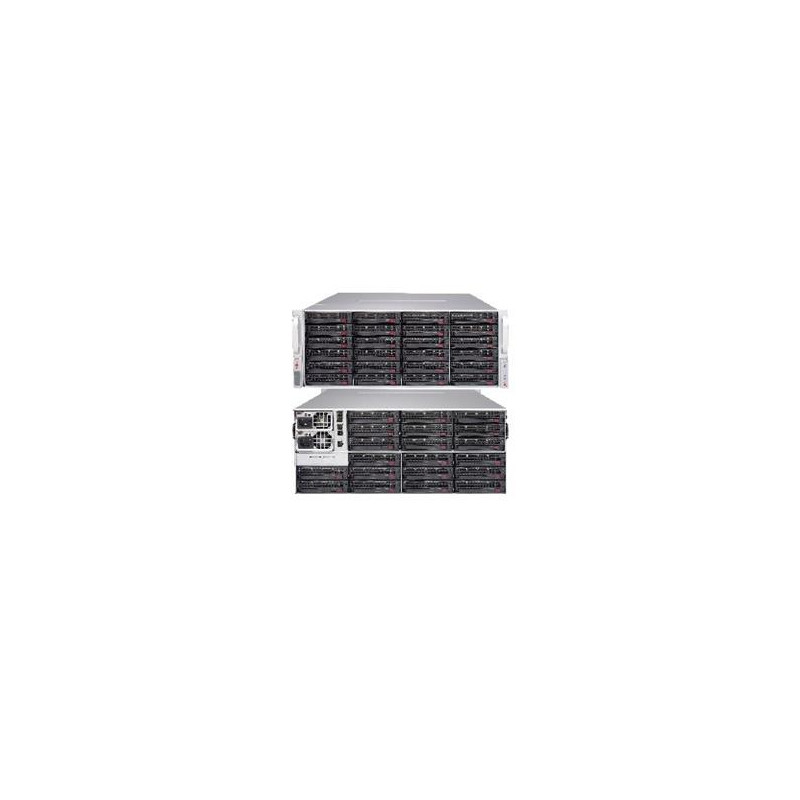

SUPERMICRO 4U JBOD Storage, 44x 3,5" HS HDD (24 front + 20 rear) Dual Expander SAS3 (12Gb s) 2x1200W (Tit.)

Tento 4U SAS3 JBOD storage systém podporuje až 44 hot-swap 3,5" HDD, se 12Gbps propustností. Osvětluje redundanci s 1200W napájením a efektivním řízením chlazení pomocí PWM ventilátorů a IPMI monitorování.
Na objednávku
94 105 Kč bez DPH 77 773 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1544319
CSE-847E2C-R1K23JBOD
24 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  • Double-sided High Density JBOD Storage Enclosure
  1. 44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
  2. Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
  3. 7x 8cm (middle) hot-swap redundant cooling fans
  4. SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
  5. JBOD Power Control Board with IPMI for remote monitor and power on-off
  6. 8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
  7. Palletized packaging for easy shipping and handling
  8. Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller

Specifications

Product SKUs

CSE-847E2C-R1K23JBOD
  • SuperChassis 847E2C-R1K23JBOD


Form Factor

  • 4U SAS3 JBOD storage chassis


Dimensions

Height
  • 7" (178 mm)
Width
  • 17.2" (437 mm)
Depth
  • 27.5" (699 mm)
Gross Weight
  • 95 lbs (43.09 kg)
Packaging (W x H x L)
  • 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm)
Available Color
  • Black


Drive Bays

  • 44x 3.5" hot-swap HDD bay for JBOD solution


Qualified SAS Controllers

  • AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
  • AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter


Backplane

  • 24-Port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
  • 20-Port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)


Front Panel

Button
  • Power On/Off button
  • System Reset button
  • Unit Identification (UID) button
LED
  • Power status LED
  • 1 Network activity LEDs
  • Power Fail LED
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED

Systems Cooling

Fans
  • 7x 8cm hot-swap redundant PWM cooling fan(s)


System Monitoring

  • IPMI


Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)


Power Supply

1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 100A / Min: 0A (200Vdc - 240Vdc)
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT847-8824
  • O/P: 12V/135
  • +5V Max: 100A
  • +3.3V Max: 30A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified


Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • UL/CB
  • UL/CUL

Components

Standard Parts List
  Part Number Qty Description
Bracket MCP-120-84702-0N 1 CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
HD Backplane BPN-SAS3-846EL2 1 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
HD Backplane BPN-SAS3-847EL2 1 20-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
Control Board MCP-280-84701-0N 4 SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature
Cable(s) CBL-CDAT-0601 2 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(s) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(s) CBL-SAST-0568 4 Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
Cable(s) CBL-SAST-0593 8 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Cable(s) CBL-SAST-0593-01 8 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847
Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH

Optional Parts List

  Part Number Qty Description
Cable CBL-SAST-0690-1 • - MINI SAS HD,12G,EXT,2M,30AWG,RoHS
CBL-SAST-0677 • - 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
CBL-SAST-0573 • - 1m external Mini SAS HD to external mini SAS HD.28AWG,HF,RoHS/REACH,PBF
HDD Tray Converter MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
Rail MCP-290-00058-0N • - Short rail set, quick release, 19.6"~26.9" Extendable Length
