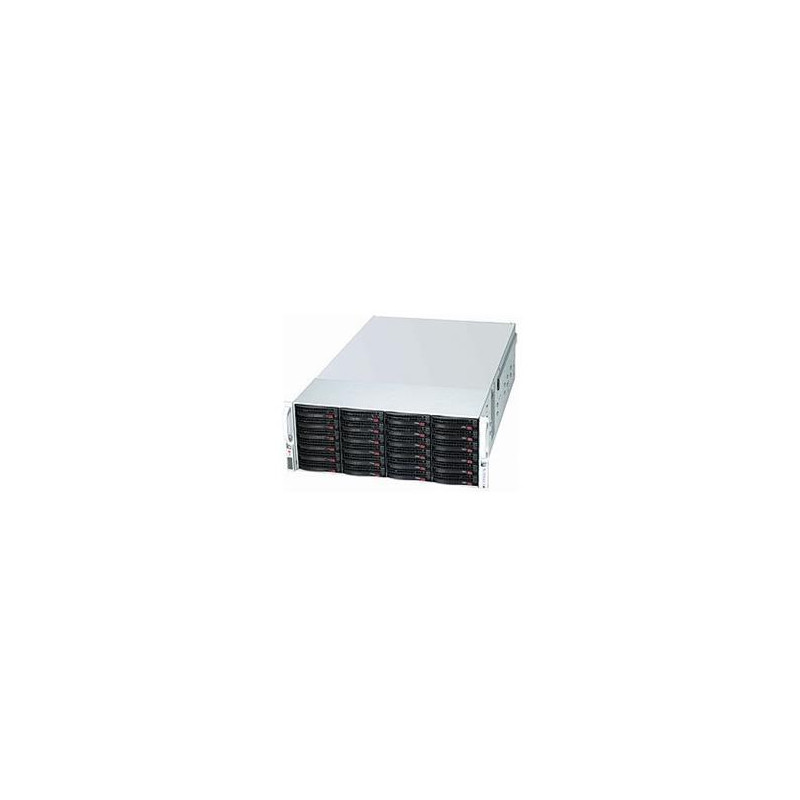

SUPERMICRO 4U JBOD Storage, 44x 3,5" HS HDD (24 front + 20 rear) Expander SAS3 (12Gb s) 2x1200W (Tit.)

Product SKUs CSE-847E1C-R1K23JBOD SuperChassis 847E1C-R1K23JBOD Form Factor 4U SAS3 JBOD storage chassis Dimensions Height 7" (178 mm) Width 17.2" (437 mm) Depth 27.5" (699 mm) Gross Weight 95 lbs (43.09 kg) Packaging (W x H x L) 27.2" (691 mm) x 17.4" (442 mm) x 39.6" (1006 mm) Available Color Black Drive Bays 44 x 3.5" hot-swap HDD bays for JBOD solution Qualified SAS Controllers AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller Backplane 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD 20-port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD Front Panel Buttons Power On/Off button System Reset Button Unit Identification (UID) button LEDs 1 Network Activity LEDs Fan Fail/System Over Heat LED Power Status LED Power Fail LED Unit Identification (UID) LED Systems Cooling Fans 7 x 8cm hot-swap redundant PWM cooling fan(s) System Monitoring IPMI Operating Environment (System) Operating Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range 8% - 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm Power Efficiency 96% Total Output Power and Input 1000W with Input 100 - 127Vac 1200W with Input 200 - 240Vac 1200W with Input 200 - 240Vdc AC Input Frequency 50-60Hz Dimensions (L x W x H) 336 x 76 x 40 mm Output Type Backplanes (gold finger) +12V Max: 83A (100Vac - 127Vac) Max: 100A (200Vac - 240Vac) Max: 100A (200 - 240) +5Vsb Max: 4A / Min: 0A Power Distributor PDB-PT847-8824 O/P: 12V/135 +5V Max: 100 +3.3V Max: 30 -12V Max: 0.6 Certification Titanium Certified Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Components ? Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-846EL1 1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD HD Backplane BPN-SAS3-847EL1 1 20-port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD Control Board CSE-PTJBOD-CB3 1 JBOD chassis power control board with IPMI remote on/off feature Control Board MCP-280-84701-0N 2 SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF Cable(S) CBL-CDAT-0601 2 4 Pin to 4 Pin I2C cable, 50cm, 26AWG Cable(S) CBL-NTWK-0587 1 INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD Cable(S) CBL-SAST-0568 2 Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s Cable(S) CBL-SAST-0593 4 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s Cable(S) CBL-SAST-0593-01 4 Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI] Power Distributor PDB-PT847-8824 1 24pin standard output with 5V high current 100Amp power distributor board for SC847 Power Supply & Accessory PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH Optional Parts List Part Number Qty Description Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length HDD Tray Converter MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH Cable CBL-SAST-0573 - 1m external Mini SAS HD to external mini SAS HD.28AWG,HF,RoHS/REACH,PBF Cable CBL-SAST-0690-1 - MINI SAS HD,12G,EXT,2M,30AWG,RoHS Cable CBL-SAST-0677 - 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
