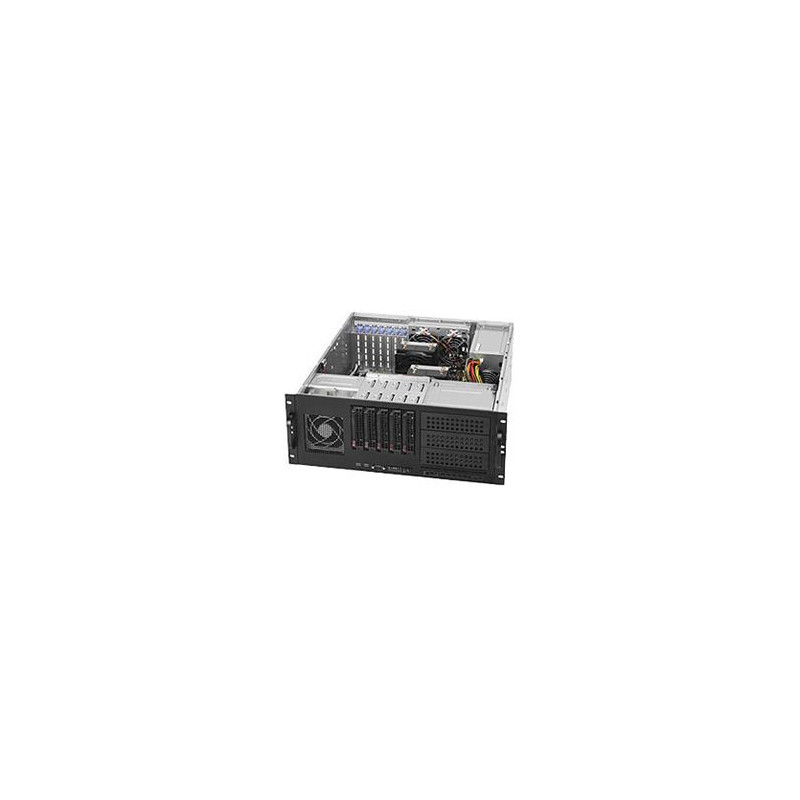

SUPERMICRO 4U 5x 3,5" HS SAS SATA, 3x 5,25", 668W (80PLUS Platinum)
Tento rackmount server s výškou 4U nabízí prostor pro 5 horkovyměnitelných 3,5" HDD a 3 standardní 5,25" jednotky. Disponuje 668W účinným napájením (80PLUS Platinum) a efektivním chlazením s horkovyměnitelnými ventilátory.
12 361 Kč bez DPH 10 215 Kč
Popis produktu
Key Features
- 668W Platinum Level High Efficiency Power Supply
- 5x SAS3 3.5" HDD Bays
- 3x 5.25" Peripheral Drive Bays
- 1x Slim DVD-ROM Drive Bay
- 5.7x Full-height, Full-length Tool-less Expansion SlotsDual channel Air Duct design
- 2x Front USB 3.0 Ports & 1x Com port
- Optional Front Bezel with Removable Air Filter
- Power Switch, Reset Switch & 6x LED Indicators
|
|
| Standard Parts List | |||
| Part Number | Qty | Description | |
| HD Backplane | BPN-SAS3-842TQ | 1 | 4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS |
| Cable(s) | CBL-0084L | 1 | 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE |
| Cable(s) | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM |
| Cable(s) | CBL-0160L | 1 | US POWER CORD 16AWG, PB FREE |
| Cable(s) | CBL-0286L | 2 | 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM) |
| Cable(s) | CBL-0336L | 1 | 57CM, 4 PIN MIDDLE FAN POWER EXTENSION (PWM) |
| Cable(s) | CBL-0484L | 5 | 55CM 30AWG SATA S-S CBL |
| Cable(s) | CBL-CUSB-0621 | 1 | 19p Female to 2x USB 3.0 type A cable, 70cm |
| Cable(s) | CBL-CUSB-0621-1 | 1 | USB 3.0(F) Type A 2x to USB3.0 20pin,70CM,26/30AWG,RoHS |
| Part(s) | MCP-230-84201-0N | 1 | |
| Part(s) | MCP-270-84201-0B | 1 | |
| Part(s) | MCP-290-84202-0B | 2 | |
| Fan(s) | MCP-340-00012-0N | 1 | |
| Fan(s) | FAN-0097L4 | 1 | 92x92x38 mm, 5K RPM, 4-pin PWM w/ Housing for SC842 |
| Fan(s) | FAN-0180L4 | 2 | 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis |
| Front Panel | FPB-FP836-D | 1 | Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836 |
| Cooling Fan & Accessory | MCP-320-00014-0N | 1 | FAN-0090L4 Rev. A Fan Housing Assembly |
| Drive Tray(s) | MCP-220-00075-0B | 5 | Black gen 5.5 hot-swap 3.5" HDD tray |
| Power Supply & Accessory | PWS-668-PQ | 1 | PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Add-on Card Holder (9 slots) | MCP-420-84202-0N | - | Add-On Card Holder (7 Slots) for SC842 |
| Cable | CBL-0153L • |
- | 6 pin to 2x big 4 pin GPU power extension from PDB, 16cm, 20AWG |
| Front Bezel | MCP-210-84201-0B | - | Black 4U Plastic Front Bezel Assembly (w/ Lock) for SC842 |
| LCD | MCP-220-00095-0B | - | Black 5.25 LCD tray wo rail, support 1x 3.5 HDD |
| Mobile Rack | CSE-M28SACB | - | Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD with fan module,HF,RoHS/REACH |
| Mounting Rail | MCP-290-00059-0B • |
- | 4U Chassis Rail Kit (Includes Side Handles) |
| Rail | MCP-290-00057-0N • |
- | Rail set, quick/quick, default for 4U 17.2 |
| Short Rail | MCP-290-00058-0N • |
- | Short rail set, quick release, 19.6"~26.9" Extendable Length |
| Tray(s) | MCP-220-00131-0B | - | Black service/ID tag tray for slim DVD bay |
| Motherboard (for CSE-842TQC-668B) | |||
 X11SAE |
X11SAE-F |
X11SPA-T |
X11SPA-TF |
| X11SPI-TF |
X11SPL-F |
X11SPM-F |
X11SPM-TF |
| X11SPM-TPF |
X11SRL-F |
X11SRM-F |
X11SRM-VF |
| X12DPL-i6 |
X12DPL-NT6 |
X12SAE |
X12SCA-F |
| X12SPL-F |
X12SPL-LN4F |
X12SPM-LN4F |
X12SPM-LN6TF |
| X12SPM-TF |
|||
 = Most optimized Chassis for SuperServer ConfigurationBlue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU |
Tento rackmount server s výškou 4U nabízí prostor pro 5 horkovyměnitelných 3,5" HDD a 3 standardní 5,25" jednotky. Disponuje 668W účinným napájením (80PLUS Platinum) a efektivním chlazením s horkovyměnitelnými ventilátory.
