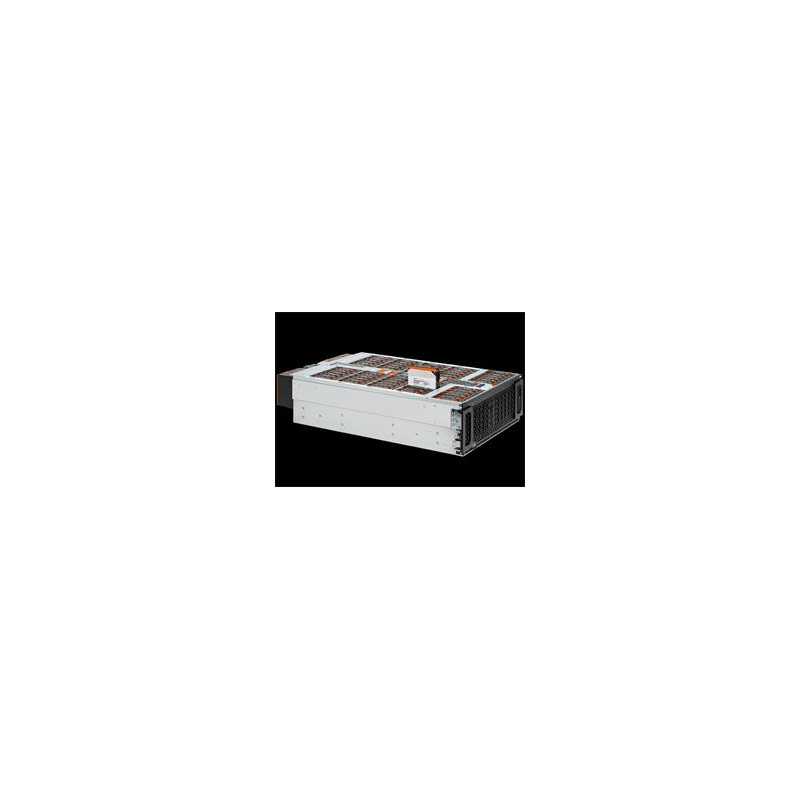

Western Digital Ultrastar Data 60 SE4U60-60 (JBOD) 0TB nTAA SAS 512E SE

Úložný systém v provedení JBOD podporuje až 60 HDD s kapacitou až 12 TB a 24 SSD. Poskytuje až 720 TB hrubého úložného prostoru, duální port SAS a zaručuje vysokou dostupnost s technologií IsoVibe pro maximální výkon. Napájení pomocí redundantních modulů s vylepšeným chlazením.
Na objednávku
1 007 656 Kč bez DPH 832 774 Kč

WESTERN DIGITAL
2173167
1EX0511
60 měsíců

Popis produktu
Features
• Up to 60 Ultrastar® DC HC520 HDDs (SAS or SATA)
• Hybrid support for up to 24 SSDs (SAS or SATA) to create a data acceleration tier
• Up to 720TB of raw storage in 4U
• Dual-port SAS for high availability or single-port SATA for low cost
• 4 rack units height, 712mm depth
• Up to 12 x 12Gb/s SAS3 host connections
• Patented IsoVibe technology ensures maximum performance even in heavy workloads
• Enterprise-grade redundant and hot -swappable PSUs, IO Modules and fans
• Improved cooling from innovative, patented ArcticFlow technology
• Rack-mounted top cover for quick and easy service
• 5-year limited warranty


Max. Drives
• 60 x 3.5” drive bays
• Up to 24 can be SAS or SATA SSD
Drive Interface
• 12Gb/s SAS
• 6G b/s SATA
Available Drive Capacities
• HDD up to 12TB
• SSD up to 6.4TB
Host Interface
• Dual redundant I/O Modules (IOM),
• 6 Mini-SAS HD ports per IOM
Weight
• Product without drives: 27.3kg (60lbs)
• Product with 60 HDDs: 79.4kg (175lbs)
LED Indicators
• Front/Rear: Power, ID, Fault
• Drive: Activity, Fault
Physical Dimensions
• Height: 175mm (6.89”)
• Width: 447mm (17.61”)
• Depth: 712mm (28.03”)
• Depth in Rack: Max of 890mm (35.04”) w/ dual CMA—includes 24 SAS cables
Management
• SCSI Enclosure Services
• Redfish (out of band, via RJ45)
Power
• Dual 1600W, 80+ Platinum
• 200-240V AC input, auto ranging, 50-60Hz
Cooling
• 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow
prevention
• 1 IO module fan
• Dual PSUs with built-in fans
Environmental
• Operating Temperature: 5 to 40°C
• Non-op Temperature: -40 to 60°C
• Humidity: 5 to 85% relative humidity
• Operating Altitude: 40°C @ 3,000ft
• Sound Power: < 7.2Bels @ 23±2°C
Serviceability
Cable-free hot-swappable IOM, power supply, fans and drives
