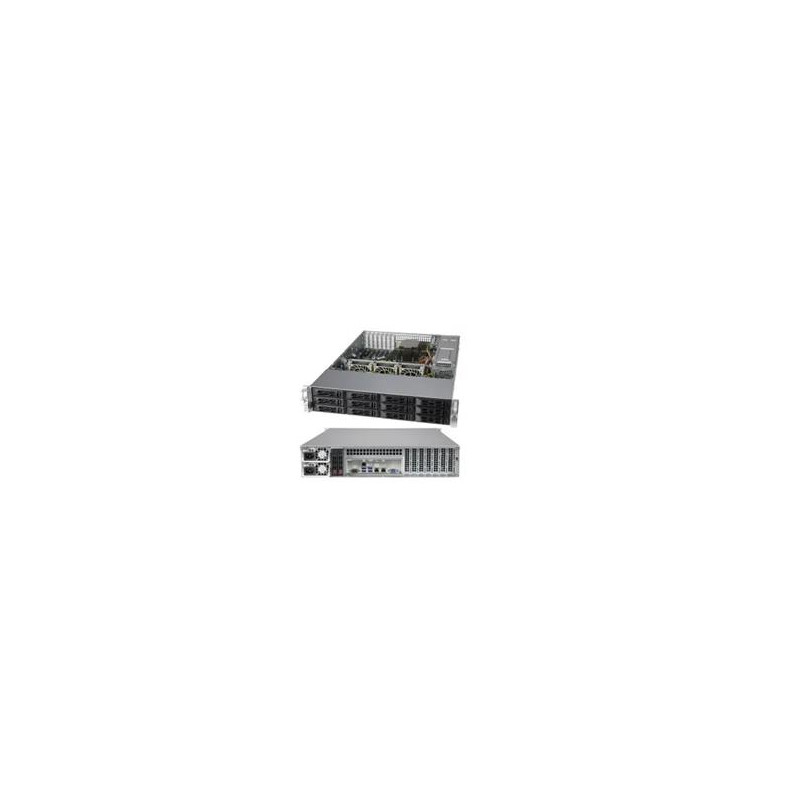

Supermicro AS-2014S-TR, Rome 7352 CPU, 4x 64GB DDR4-3200, 2x SSD M.2 NVMe PCIe4 960GB, AOC-S3916L-H16IR-32DD-O, 4x HDD,

Server s AMD EPYC 7002/7003 CPU, 4x 64GB DDR4-3200, nabízí vysoký výkon a kapacitu s až 2TB RAM. Obsahuje 12 hot-swap SATA3 bayů, 2 NVMe SSD, a redundantní 920W PSU, ideální pro náročné aplikace.
Na objednávku
145 269 Kč bez DPH 120 057 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
2252992
AS-2014STR-OTO-47
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu
Product SKUs

AS -2014S-TR
  • A+ Server 2014S-TR (Black)
Motherboard


Super H12SSL-i
Processor/Chipset

CPU
  • Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory

Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
On-Board Devices

Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Broadcom BCM5720 Gigabit Ethernet Controller
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output

SATA
  • 8 SATA3 (6 Gbps) ports
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports (4 rear, 2 via header)
COM
  • 1 COM Port (rear)
Video
  • 1 VGA port
System BIOS

BIOS Type
  • AMI 256Mb SPI Flash EEPROM
Management

Software
  • Super Doctor 5
  • Watch Dog
  • NMI
  • SUM
  • IPMI 2.0, KVM with dedicated LAN
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • 3 Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight

Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 25.5" (648mm)
Package
  • 11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
  • Net Weight: 33.5 lbs (15.2 kg)
  • Gross Weight: 60 lbs (27.2 kg)
Available Colors
  • Black
Front Panel

Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots

PCI-Express
  • 5 PCI-E 4.0 x16 LP slots
  • 2 PCI-E 4.0 x8 LP slots
Drive Bays

Hot-swap
  • 12 Hot-swap 3.5" SATA3 drive bays
  • 2 rear Hot-swap 2.5" SATA3 drive bays via optional kit
Backplane

2U SAS/SATA/NVMe HDD Backplane
System Cooling

Fans
  • 3x 80x80x38mm middle cooling fans
Power Supply
1U 920W redundant power supply
Total Output Power and Input
  • 920W with Input 100 - 127Vac
  • 920W with Input 200 - 240Vac
  • 920W with Input 200 - 240Vdc
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
AC Input Frequency
  • 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
  • Max: 75A / Min: 0A (200Vac-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (connector)
Certification Platinum Level Certified
Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
