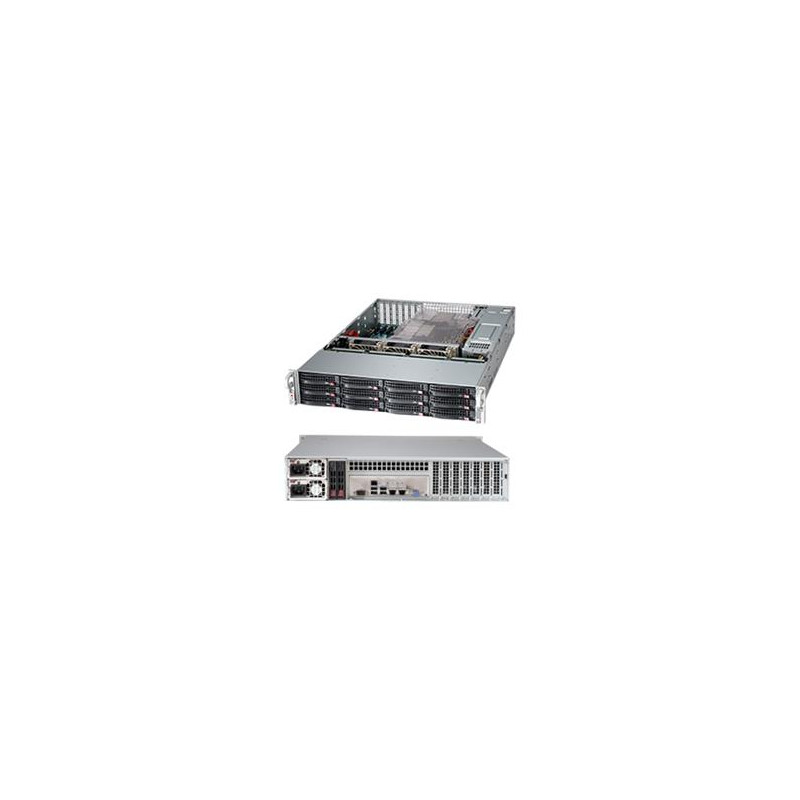

SUPERMICRO 2U chassis 12x 3,5" HS SAS SATA NVMe + volitelný 2x 2,5", 2x800W (80PLUS tit.)

Robustní 2U rackmount šasi s podporou 12x 3,5" SAS3/SATA3/NVMe4 úložných zařízení. Obsahuje redundantní 800W napájení a výkonné ventilátory pro optimální chlazení. Možnost instalace 2x 2,5" disků.
Na objednávku
27 226 Kč bez DPH 22 501 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1298870
CSE-826BAC12-R802LPB
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. 800W high-efficiency AC-DC Redundant power supplies
  2. Direct attached Storage Rackmount chassis
  3. Support 12x SAS3/SATA3/NVMe4 storage devices
  4. 3 high-performance fans with adjustable air shroud
Specifications

Product SKUs

CSE-826BAC12-R802LPB
  • SuperChassis 826BAC12-R802LPB


Form Factor

  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed


Processor Support

  • Dual and Single Intel® and AMD processors


Dimensions

Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 55 lbs (24.95 kg)
Net Weight
  • 40 lbs (18.14 kg)
Packaging (W x H x L)
  • 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
Available Color
  • Black


Expansion Slots

  • 7x Low-profile expansion slot(s)


Drive Bays

  • Optional 2x 2.5" hot-swap drive bay
  • 12x 3.5" hot-swap drive bay
  • 12x SAS3/SATA3/NVMe4 storage devices


Backplane

  • 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS


Front Panel

Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • 2 Network Activity LEDs
  • Unit Identification (UID) LED
  • Fan Fail/System Over Heat LED

Systems Cooling

Fans
  • 3x 8cm high-performance PWM fan(s)


System Monitoring

  • Chassis intrusion switch


Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)


Power Supply

1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 200 - 240Vdc
  • 800W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A / Min: 0A (100Vac - 240Vac)
  • Max: 66A / Min: 0A (200Vdc - 240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-8824
  • O/P: 12V/135
  • +5V Max: 40A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified


Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL


Components

Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29001-0N 1 SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HD Backplane BPN-SAS3-LA26A-N12 1 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS
Cable(s) CBL-CDAT-0607 1 [NR] FRONT CNTL,20 TO 20 PIN, P0.5, FFC,FLAT, 23.5CM, STD
Cable(s) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Cable(s) CBL-PWEX-1078 3 PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
Part(s) MCP-120-00115-0N 7 Blank LP L-bracket with 4x4 vent holes
Part(s) MCP-230-82602-0N 1 Top cover for SC826B/216B/825B
Part(s) MCP-290-82604-0V 1 Silver right chassis handle for SC826,HF,RoHS/REACH,PBF
Part(s) MCP-290-82617-0V 1 SC826B left chassis handle w/ RESET mylar for FPB-FP826-T
Fan(s) FAN-0166L4 3 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
Fan(s) FAN-0206L4 3 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
Front Panel FPB-TB826-T 1 Chassis transfer board for SC826
Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5" HDD tray
Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Mounting Rail(s) MCP-290-00060-0N 1 Threaded rail adapter default for round hole rack
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF

Optional Parts List

  Part Number Qty Description
Front Bezel MCP-210-82601-0B • - Black Front Bezel for 826 chassis
HDD Kit MCP-220-82616-0N • - 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Short Rail MCP-290-00058-0N • - Short rail set, quick release, 19.6"~26.9" Extendable Length
Tray(s) MCP-220-00116-0B • - Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH
MCP-220-00118-0B • - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH


Servers (for CSE-826BAC12-R802LPB)

SSG-520P-ACTR12H SSG-520P-ACTR12L



Motherboard (for CSE-826BAC12-R802LPB)

 X12SPI-TF

 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
