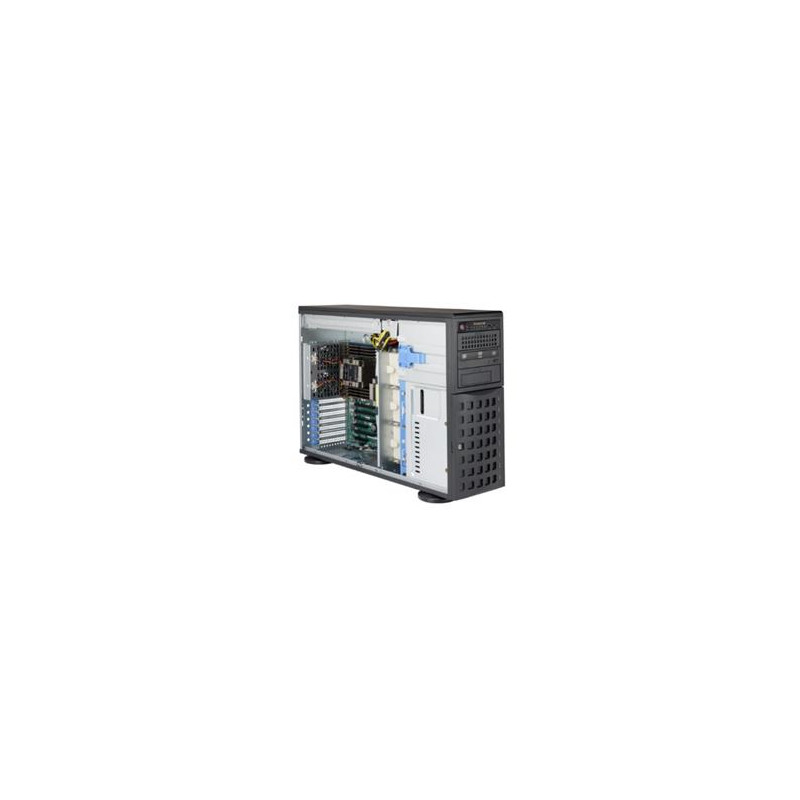

SUPERMICRO Tower 4U 8x 3,5" HS SAS SATA, 2x 5,25", 1x 5,25" pro 3,5", 2x1230W (Titanium)

4U tower skříň s podporou až 8 hot-swappable HDD (3.5"/2.5") a rozšiřujícími sloty pro E-ATX, ATX či Micro ATX desky. Obsahuje 2x 5.25" externí pozice a redundantní 1230W napájecí zdroj certifikovaný na úroveň Titanium pro vysokou účinnost. Skříň je vybavena kvalitním chlazením a zabezpečením.
Na objednávku
24 798 Kč bez DPH 20 494 Kč

Poptat zboží
Hlídat cenu
Přidat k porovnání
Přidat k oblíbeným
SUPERMICRO
1178504
CSE-745BAC-R1K23B
36 měsíců
  • Poradna a návody
  • Vhodné pro
Popis produktu

Key Features

  1. 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
  2. Front HDD Door Lock & Side Panel Intrusion Switch
  3. Front I/O Ports: 2x USB 3.0
  4. 3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans
  5. 4U / Full Tower Chassis Supports max. Motherboard, Sizes - E-ATX 13.68" x 13"/ATX/Micro ATX
  6. 1230W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply
  7. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives
Specifications

Product SKUs

CSE-745BAC-R1K23B
  • SuperChassis 745BAC-R1K23B

Form Factor

  • 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13"

Processor Support

  • Dual, single Intel® / AMD processors

Dimensions

Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Net Weight
  • 59 lbs (26.76 kg)
Gross Weight
  • 62 lbs (28.12 kg)
Packaging (W x H x L)
  • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
  • Black

Expansion Slots

  • 7 full-height & full-length expansion slot(s)

Drive Bays

  • 8 x 3.5"/2.5" hot-swap SAS drive bay with SES3

Backplane

  • 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis

Peripheral Drives

  • 3 x standard 5.25" drive bay

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Ports
  • 2x USB 3.0 Port(s)
Systems Cooling

Fans
  • 2 x 80mm PWM Rear Chassis Fans
  • 9.4k RPM
  • 3 x 80mm high-performance fan(s)
  • 9.4k RPM

System Monitoring

  • Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac, and 240Vdc, output: +12V/+5Vsb, PMBUS 1.2, (L)336x(W)76x(H)40 mm, EMI Class B,
Power Efficiency
  • 96%
Total Output Power and Input
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (connector)
+12V
  • Max: 83A (100Vac - 127Vac)
  • Max: 100A (200Vac - 240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT747-4648
  • O/P: 12/212
  • +5V Max: 30
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • N/A

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC
  • FCC class B
  • UL/CB
Components

Standard Parts List

  Part Number Qty Description
Air Shroud MCP-310-49001-0N 1 SC745 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
HD Backplane BPN-SAS3-743A 1 8-port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0160L 2 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0216L 3 4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S) CBL-0471L 1 USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Cable(S) CBL-SAST-0631 2 Cross-over Mini SAS HD to 4 SATA w/SB, S. 55cm. 30AWG
Fan(s) FAN-0180L4 2 80x80x38 mm, 9.4K RPM, Hot-swappable Rear Exhaust Fan for X11 Purley Platform Newly Enabled 4U Chassis
Fan(s) FAN-0182L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 4U Chassis
Drive Tray(s) MCP-220-00193-0N 8
Power Distributor PDB-PT747-4648 1 POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE
Part(s) MCP-290-74502-0B 1 Plastic feet (4 pcs set) for 4U tower chassis, black color
Power Supply & Accessory PWS-1K23A-SQ 2 1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac

Optional Parts List

  Part Number Qty Description
Mounting Rail CSE-PT26L-(B) - 4U Chassis Rail Kit (Includes Side Handles) (B = Black), Extendable length 26"~35.9"
LCD MCP-220-00095-0B - 5.25" USB LCD Kit
Fan Kit MCP-320-00046-0N-KIT - Rear fan kit (8.2K RPM fan) for SC747B / 835X / 836BH
Rear Exhaust Fan MCP-320-00047-0N-KIT - Rear fan kit (5K RPM fan) for SC745B / 835X / 836BH
GPU/Add-on Card Dummy MCP-240-00096-0N - SC747B GPU/Add-on Card Dummy Assembly (2 slots) - single pack
Cable CBL-0153L - 6 pin to 2x big 4 pin GPU power extension from PDB, 16cm, 20AWG
Cable Management Arm MCP-290-00073-0N - Supermicro Cable Management Arm for 2U, 3U and 4U chassis
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
HDD Tray MCP-220-00080-0B - Black hotswap gen 2 3.5 to 2.5 HDD tray
