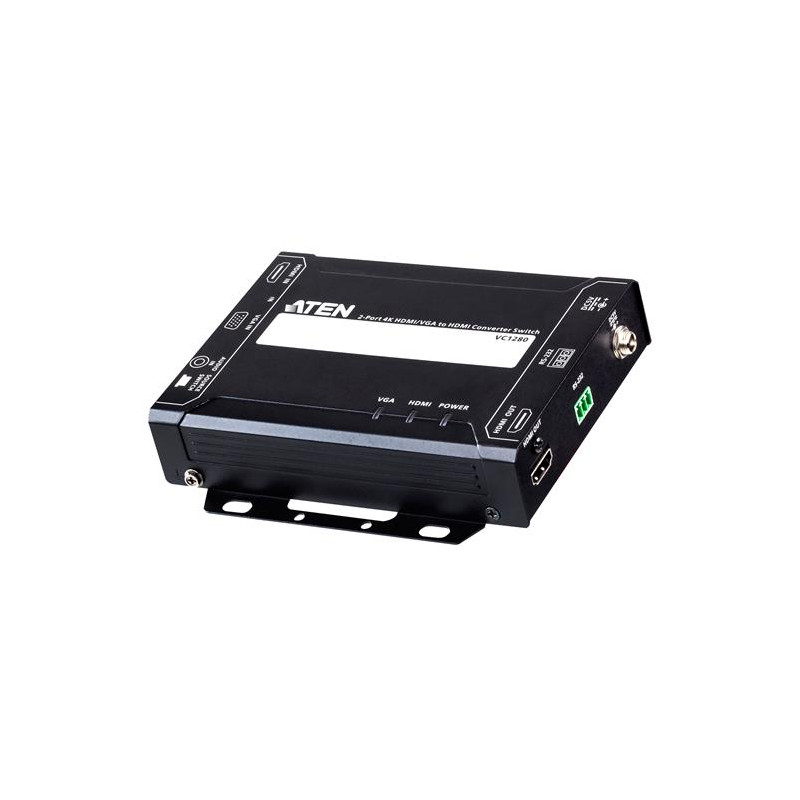

ATEN VC1280-AT-G 2-Port 4K HDMI VGA to HDMI Converter Switch

Supports Auto Switch – the VC1280 automatically switches to a newly plugged-in source
Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton
HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compatible
RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices for firmware upgrade

The ATEN VC1280 is a user-friendly device that simply connects HDMI and VGA sources to one HDMI display or projector. Apart from being compliant with HDCP 1.4, the VC1280 also supports HDMI 1.4 including 3D, Deep Color and 4K (3840 X 2160@30 Hz). In addition, the VC1280 features built-in VGA conversion, which allows you to transmit VGA signals to HDMI output without using extra adapters or scalers.
The VC1280 offers 3 source switching modes – HDMI, VGA, and AUTO, it allows you to switch rapidly and intuitively via a pushbutton for real-time use. When the VC1280 operates on the AUTO input mode, it transmits the first detected input to the HDMI display, and automatically switches to a newly plugged-in source when it detects the signals.

Without any software or driver installation required, the VC1280 is a handy and easy-to-use multi-input A/V switch. It is ideal for user that needs automatic and quick switching to adopt. With the VC1280, you can effortlessly accelerate instant collaboration and work efficiency with co-workers.

Supports Auto Switch – the VC1280 automatically switches to a newly plugged-in source
Connects two sources (HDMI/VGA) to one HDMI display
Converts VGA signals to HDMI output
Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton
HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compatible
Superior video quality – up to 4K (3840 x 2160 @ 30Hz)
RS-232 Channel Transmission – allows you to connect to serial terminals or serial devices for firmware upgrade
Supports Consumer Electronic Control (CEC)
Plug-and-play; no software or driver installation required
Quality and durable metal enclosure

Package Contents
1x VC1280 2-Port 4K HDMI/VGA to HDMI Converter Switch
1x 0AD8-1F05-26M1 Power Adapter
1x RS-232 Terminal Block
1x User Instructions

LEDs
Status
3 x LED (Front - Source Switching: AUTO / HDMI / VGA)
Color: Orange
3 x LED (Top - HDMI / VGA / POWER)
Color: HDMI – Orange / VGA – Orange / Power - Green

Video Input
Interfaces
1 x HDMI (Type A Female, Black)
1 x VGA (HDB-15 VGA Female, Blue)
Impedance
HDMI: 100 ?
VGA: 75 ?
Max. Distance
1.8 m - VGA (1920 x 1200)
3m - HDMI (3840 x 2160@30Hz)

Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI 1.4 (3D, Deep Color, 4K)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Video Input
3m - HDMI (3840 x 2160 @30Hz)
1.8m - VGA (1920 x 1200)
Video Output
3m - HDMI (3840 x 2160 @30Hz)

Audio
Input
1 x HDMI (Type A Female, Black)
1 x 3.5mm Stereo audio Jack Female (Green)
Control
RS-232
FW upgrade & control:
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits: 8,
Stop Bits: 1, no parity and flow control

Switches
Video Input Port Selection
Source switching: HDMI / VGA / AUTO
1 x Push Button

Connectors
Power
1 x DC Jack (with locking, black)
Power Consumption
DC5V:1.8W:8BTU

Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing

Physical Properties
Housing
Metal
Weight
0.43 kg ( 0.95 lb )
Dimensions (L x W x H) with bracket
14.32 x 12.30 x 3.00 cm
(5.64 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket
13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
