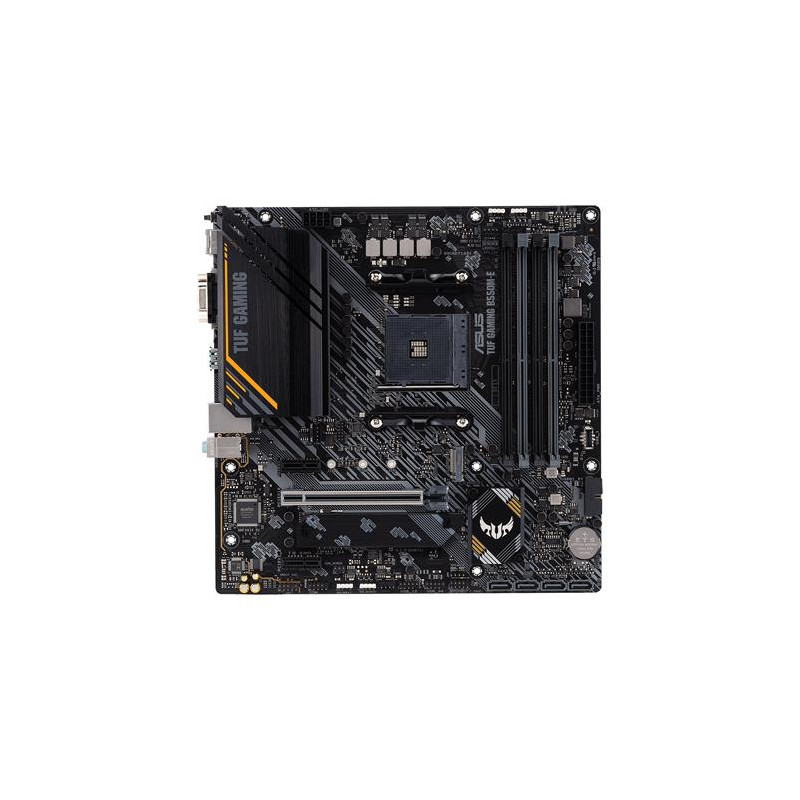

ASUS TUF GAMING B550M-E, AMD B550, 4xDDR4, Mikro ATX (90MB17U0-M0EAY0)

Chipset: AMD B550

Rozměrový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pro procesory: AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4100(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

Dual Channel Memory Architecture
ECC memory (ECC mode) support varies by CPU
Grafická karta: (na základě procesoru)

1x DisplayPort 1.2
1x D-Sub
1x HDMI™ 2.1 (4K@60Hz)
Zvuková karta:

Podpora: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Podporuje až 24-Bit/192 kHz playback
Audio Shielding
Premium Japanese audio capacitors
Dedicated audio PCB layers
Síťová karta:

Realtek 1Gb Ethernet
Rozšiřující sloty:

1x PCIe (3.0/4.0) x16 slot (supports x16 mode)
2x PCIe 3.0 x1 slots
RAID řadič: 0, 1, 10

SATA:

4x SATA 6Gb/s ports
M.2:

1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe (3.0/4.0) x4 & SATA modes)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
USB:

zadní USB porty ( celkem 6 )
2x USB 3.2 Gen 2 ports (2x Type-A)
2x USB 3.2 Gen 1 ports (2x Type-A)
2x USB 2.0 ports (2x Type-A)
přední USB porty ( celkem 7 )
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
2x USB 3.2 Gen 1 ports
4x USB 2.0 ports
Interní porty:

1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
2x 4-pin Chassis Fan headers
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
1x USB 3.2 Gen 1 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
2x AURA Addressable Gen 2 headers
2x AURA RGB headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x Speaker header
1x SPI TPM header (14-1pin)
1x 10-1 pin System Panel header
Externí porty:

2x USB 3.2 Gen 2 ports (2x Type-A)
2x USB 3.2 Gen 1 ports (2x Type-A)
2x USB 2.0 ports (2x Type-A)
1x DisplayPort
1x D-Sub port
1x HDMI™ port
1x Realtek 1Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack™ button
1x PS/2 Keyboard/Mouse combo port
Obsah balení:

2x SATA 6Gb/s cables
1x I/O Shield
1x M.2 Rubber package
1x M.2 SSD screw package
1x TUF Gaming sticker
1x Support DVD
1x TUF Certification card
1x User manual
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
