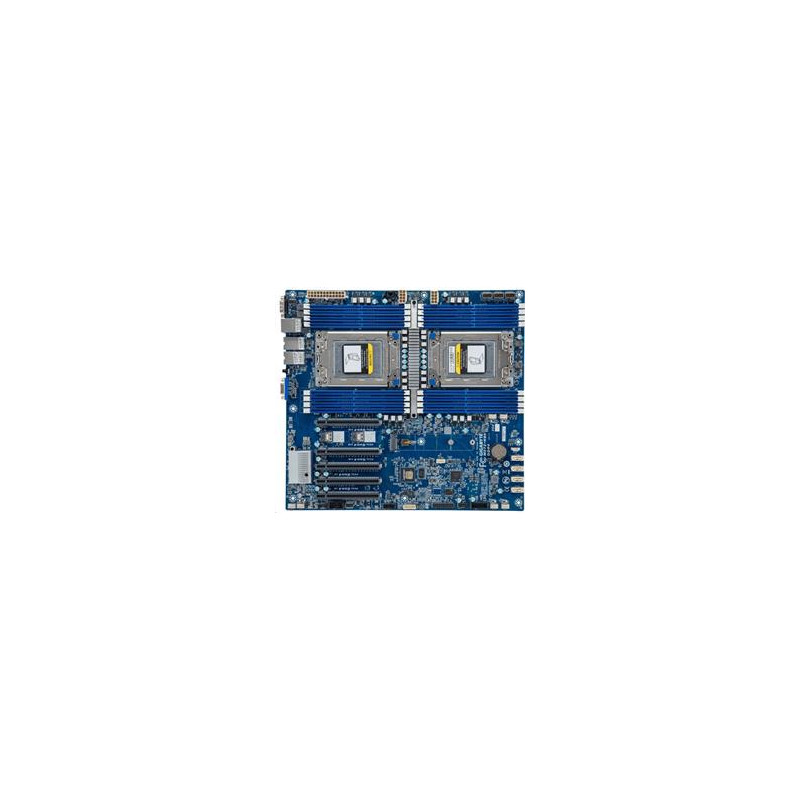

Gigabyte MB MZ72-HB0, 2x SP3, 16x DDR4r, 4x SATA+12xSATA 4xNVMe, 2x NVMe, M.2, 2x 10Gb LAN, 5xPCIe4.0 (3 x16,2 x8), IPMI
E-ATX základní deska podporující procesory AMD EPYC 7002 se dvěma SP3 sockety, až 64 jader a 128 vláken na procesor. Nabízí 16 DIMM slotů pro DDR4 paměti, 4 SATA a 12 SlimSAS portů, 2 NVMe, 2x 10GbE LAN, a 5 PCIe 4.0 slotů. IPMI pro vzdálenou správu a robustní teplotní rozsah pro spolehlivý výkon.
24 861 Kč bez DPH 20 546 Kč
Popis produktu
Form Factor
E-ATX
305W x 330D (mm)
CPU
AMD EPYC™ 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 280W
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz
LAN
2 x 10GbE BASE-T LAN ports (1 x Broadcom® BCM57416)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x 7-pin SATA 6Gb/s ports
*3 x SlimSAS (with 12 x SATA 6Gb/s or 3 x NVMe PCIe Gen4 x4) ports
1 x M.2 slot:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2280/22110 cards
2 x NVMe ports:
- SlimSAS 4i type
- PCIe Gen4 x4 per port
* NOTE:
Default setting is SATA, please go to BIOS Setup section, Advances>PCI Subsystem setting for advanced configuration manually.
RAID
-
Expansion Slots
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_0)
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_0)
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot ( from CPU_1)
Slot_2: 1 x PCIe x16 (Gen4 x8 bus) slot ( from CPU_0)
Slot_1: 1 x PCIe x16 (Gen4 x8 bus) slot ( from CPU_1)
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
Board Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MZ72-HB0
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimension: 729 x 415 x 432 mm
Quantity: 10 x single box with one carton
Bulk Packaging Content
10 x MZ72-HB0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
Reference Numbers
Retail: 9MZ72HB0MR-00
Bulk: 9MZ72HB0NR-00
Part Numbers:
- I/O shield: 12AIO-MZ72H0-00R
- SATA 6Gb/s cable: 25CF4-500541-K1R
