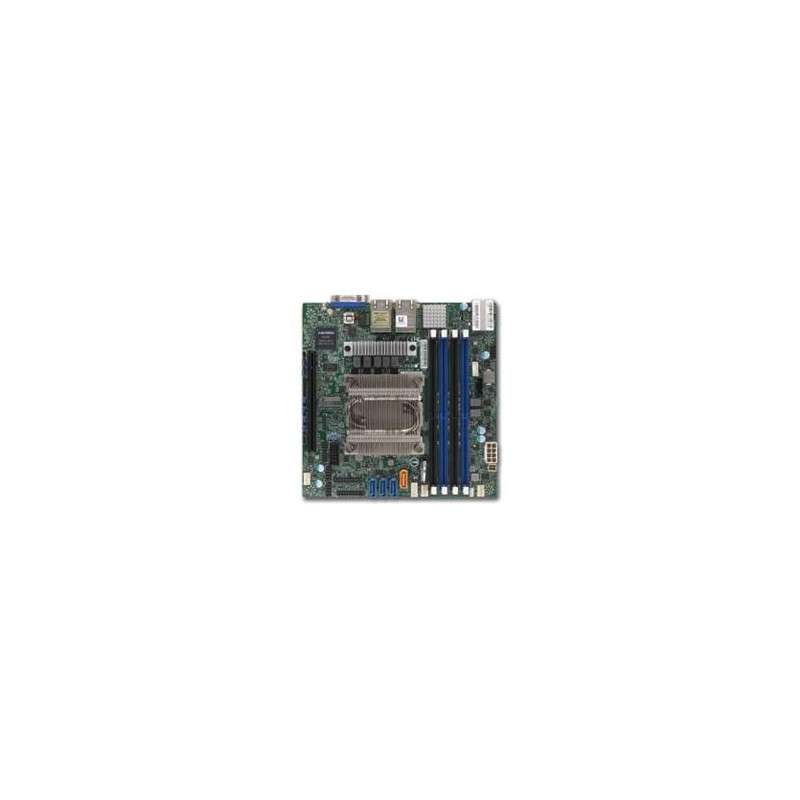

SUPERMICRO MB 1x Epyc 3251 SoC (8C 16T), 4x DDR4, 4xSATA3, 1xM.2 (2280), PCIe 3.0 x16, IPMI, 4x LAN (i350-AM4)

Product SKUs MBD-M11SDV-8C-LN4F M11SDV-8C-LN4F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17cm x 17cm) Processor/Cache CPU Single AMD EPYC™ 3251 SoC Processor Cores 8 Core/16 Thread Chipset System on Chip System Memory Memory Capacity 4 DIMM slots Supports up to 512GB Registered ECC DDR4 2666MHz SDRAM in 4 DIMMs 2-channel memory bus Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices SATA SATA3 (6 Gbps) Network Controllers 4x 1GbE with Intel® I350-AM4 1 Realtek RTL8211E PHY (dedicated IPMI) IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC VGA ASPEED AST2500 BMC Input / Output SATA 4 SATA3 (6 Gbps) ports LAN 4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 3.0 ports 6 USB 2.0 ports VGA 1 VGA port Others 1 COM port header 1 TPM 2.0 header Expansion Slots PCI-Express 1 PCI-E 3.0 x16 slot M.2 Interface: 1 PCI-E 3.0 x4 Form factor: 2280 Key: M-key Chassis ( Optimized for M11SDV-8C-LN4F ) 1U SCE300 SCE301 Server(s) ( with M11SDV-8C-LN4F ) Model(s) AS -5019D-FTN4 AS -E301-9D-8CN4 System BIOS BIOS Type AMI 128Mb Flash EEPROM Management Software Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN Power Configurations ACPI Power Management Power-on mode control for AC power loss recovery PC Health Monitoring CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +12V CPU switching voltage regulator Supports system management utility VBAT FAN Up to 3 fan status tachometer monitoring Up to 3 4-pin fan headers Dual Cooling Zone Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 6x Fan connectors I2C Temperature Sensing Logic LED CPU / System Overheat LED Other Features UID Operating Environment / Compliance Environmental Specifications Operating Temperature: 0°C to 60°C (32°F to 140°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
