Product SKUs

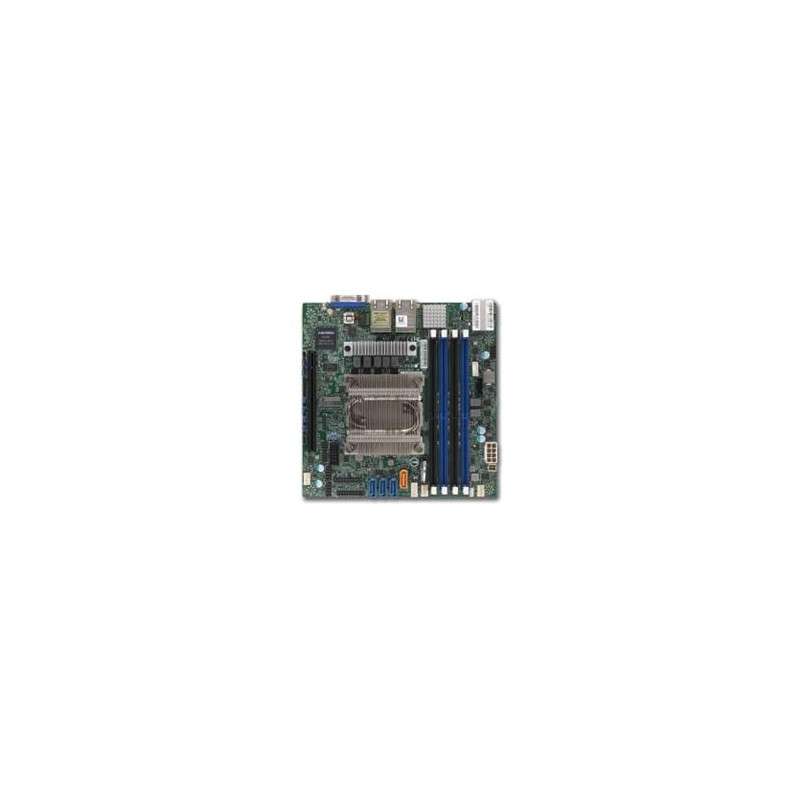

MBD-M11SDV-8CT-LN4F M11SDV-8CT-LN4F
Physical Stats
Form Factor Mini-ITX
Dimensions 6.7" x 6.7" (17cm x 17cm)
Processor/Cache
CPU Single AMD EPYC™ 3201 SoC Processor
Cores 8 Core/8 Thread
Chipset System on Chip
System Memory
Memory Capacity 4 DIMM slots
Supports up to 512GB Registered ECC DDR4 2133MHz SDRAM in 4 DIMMs
2-channel memory bus
Memory Type DDR4 2133 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage 1.2V
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA SATA3 (6 Gbps)
Network Controllers 4x 1GbE with Intel® I350-AM4
1 Realtek RTL8211E PHY (dedicated IPMI)
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
VGA ASPEED AST2500 BMC
Input / Output
SATA 4 SATA3 (6 Gbps) ports
LAN 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB 2 USB 3.0 ports
6 USB 2.0 ports
VGA 1 VGA port
Others 1 COM port header
1 TPM 2.0 header
Expansion Slots
PCI-Express 1 PCI-E 3.0 x16 slot
M.2 Interface: 1 PCI-E 3.0 x4
Form factor: 2280
Key: M-key
Chassis ( Optimized for M11SDV-8CT-LN4F )
1U SCE300
SCE301
System BIOS
BIOS Type AMI 128Mb Flash EEPROM
Management
Software Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +12V
CPU switching voltage regulator
Supports system management utility
VBAT
FAN Up to 3 fan status tachometer monitoring
Up to 3 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 6x Fan connectors
I2C Temperature Sensing Logic
LED CPU / System Overheat LED
Other Features UID
Operating Environment / Compliance
Environmental Specifications Operating Temperature:
0°C to 60°C (32°F to 140°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
