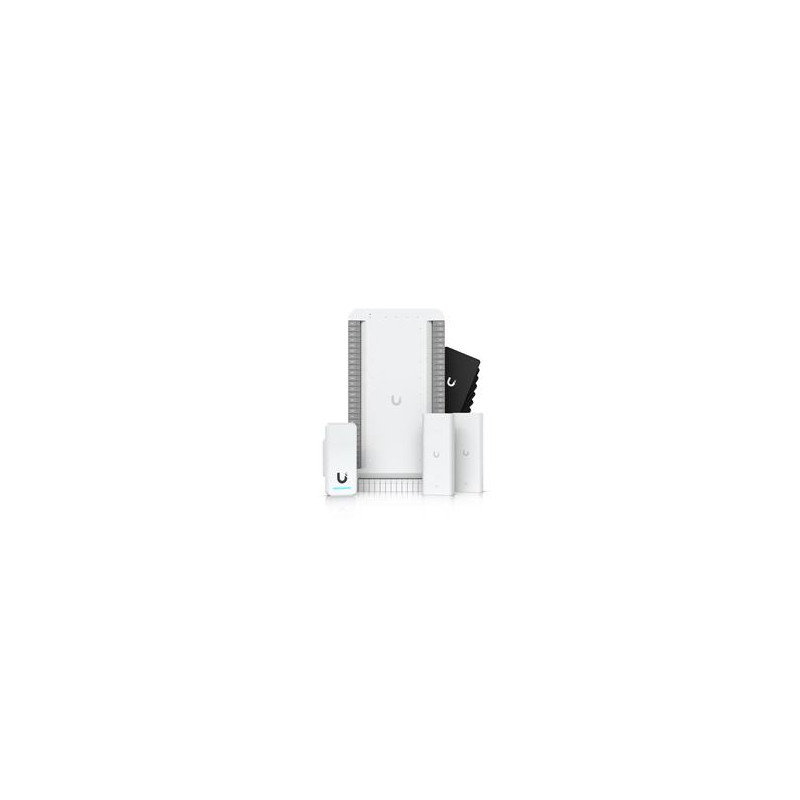

Ubiquiti Přístupový systém pro výtahy (startovní sada) - 1x rozbočovač, 2x čtečka, 2x PoE extender, 10x přístupová karta

Připojuje se ke čtečkám ve výtahu pomocí PoE a autorizuje výběr podlaží uživatelem. Podpora až 18 pater a digitálních vstupů pro stav vozu a nouzové situace. (1) Elevator Hub (1) G2 Reader (2) 2-wire PoE extenders (10) Access Cards UA-Hub-Elevator Mechanical Dimensions 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3") Weight 537 g (1.2 lb) Enclosure material Polycarbonate Mounting material Polycarbonate Hardware Networking interface (4) 10/100/1000 Base-T Management interface (1) 10/100/1000 Base-T Power method PoE++ Max. power consumption 7W (Without PoE output) PoE input (1) PoE++, 50V DC, 1.2A PoE output PoE passthrough, (4) PoE, 50V DC, total 42W ESD/EMP protection Air: ±8kV, contact: ±4kV Digital input (5) Car position (6) Car status; Up/down/stop/full/door open/door close (1) Emergency Outputs (18) Relays Rating 30V DC/2A LEDs System: white/blue/red Output relays: white Buttons (1) Factory-reset Terminal blocks Ambient operating temperature -10 to 40° C (14 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC UACC-Extender-2Wire-Tx/Rx Mechanical Dimensions 40 x 105 x 25 mm (1.6 x 4.1 x 1") Weight PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Enclosure material Polycarbonate Mounting material Polycarbonate Hardware Networking interface (1) 10/100 MbE (1) Homeplug AV Management interface (1) 10/100 MbE Power method PoE++ Max. power consumption 3W (Without PoE output) PoE input (1) PoE++, 50V DC, Max. 1.2A PoE output (1) PoE+, 48V DC, 0.72A ESD/EMP protection Air: ±8kV, contact: ±4kV LED White Ambient operating temperature -10 to 40° C (14 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC UA-G2 Mechanical Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") Weight 82 g (2.9 oz) Enclosure material Polycarbonate, glass Mounting In wall, gang box Weatherproofing IP55 Hardware Networking interface (1) 10/100 MbE RJ45 port Connectivity BLE 4.1 Power method PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU Supported voltage range 48V DC Max. power consumption 5W ESD/EMP protection Air: ±15kV, contact: ±8kV Sensors Proximity sensor Speaker (1) 8 ohm, 0.7W LEDs R/G/B/W Button (1) Factory-reset NFC frequency 13.56 MHz NFC read range < 30 mm NFC standards ISO 14443A, 14443B, 15693 NFC technology NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire Operating environment Outdoor use Ambient operating temperature -30 to 45° C (-22 to 113° F) Ambient operating humidity 5 to 90% noncondensing Software information The software version of a product can be checked at https://unifi.ui.com UL 294 level Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable. CAN/ULC-60839-11-1 Grade Grade assignment: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date and/or revision level UA-G2/UA-G2-Black, V02 LED System Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware Strobing red: Emergency lockdown UA-Card Mechanical Dimensions 85.6 x 54 x 0.8 mm (3.4 x 2.1 x 0.03") Weight 5 g (0.18 oz) Format ISO 7810 ID-1 NFC frequency 13.56 MHz NFC technology ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
